VOLVO: 272276
VOLVO: 272 276
OE number or original number means the number of the whole component or part of it installed on the vehicle on the production line by the car manufacturer. The meaning of the OE number is equivalent to "Genuine Number"
cheapest first
expensive first
popular products first
by name
by newest

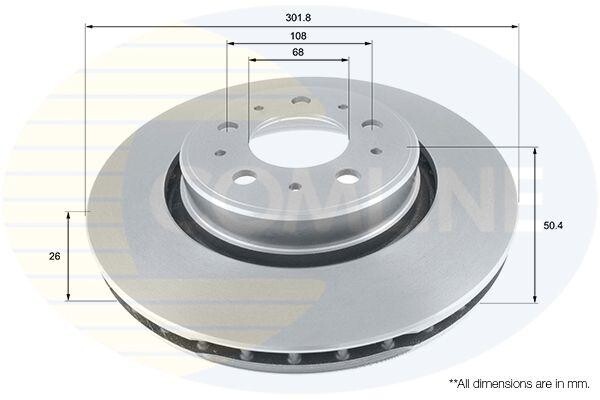

Fitting Position Front Axle
Height 50.2mm
Brake Disc Type Vented
Brake Disc Thickness 26mm
Material Cast Iron
Processing Untreated
Outer Diameter 301.8mm
Centering Diameter 68mm
Bolt Hole Circle Ø 108mm
Surface Uncoated
Supplementary Article/Supplementary Info 2 without bolts/screws
Wheel Bolt Bore Ø 14.6mm
More information »
Brake Disc Type Vented
Num. of holes 5
Appr. stamp R90 Homologated
Surface Oiled
Outer Diameter 302mm
Brake Disc Thickness 26mm
Min. thickness 23mm
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Height 50mm
More information »
3 pictures
Outer Diameter 302mm
Brake Disc Thickness 26mm
Min. thickness 23mm
Height 50.5mm
Rim 5-Hole
Brake Disc Type Vented
Centering Diameter 68mm
Bolt Hole Circle Ø 108mm
Surface Coated
Hub Ø 163mm
More information »
2 pictures
Brake Disc Type Vented
Outer Diameter 302mm
Brake Disc Thickness 26mm
Height 50mm
Centering Diameter 68mm
Number of mounting bores 5
Surface Coated
Weight 7.38kg
Min. thickness 23mm
More information »
Brake Disc Type vented
Outer Diameter 302mm
Brake Disc Thickness 26mm
Height 50.4mm
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Num. of holes 5
Min. thickness 23mm
Number of bores 5
More information »
4 pictures
Brake Disc Type Externally Vented
Outer Diameter 302mm
Brake Disc Thickness 26mm
Height 50.2mm
Min. thickness 23mm
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Hole Pitch/Number 05/10
Supplementary Article/Supplementary Info 2 without wheel hub, without wheel studs
Weight 7.3kg
Assy./disassy. by qualified personnel required! More information »
Partnumber: 8DD 355 106-131
Sold in pairs
2 pictures
Outer Diameter 302mm
Brake Disc Thickness 26mm
Min. thickness 23mm
Brake Disc Type Vented
Num. of holes 5
Processing High-carbon
Surface Coated
MAPP code available Bolt Hole Circle Ø 108mm
Height 50mm
Centering Diameter 68mm
Inner Diameter 151mm
Bore Ø 14.4mm
Appr. stamp E1 90R-02C0118/0058
More information »
Partnumber: 24.0126-0107.1
Sold in pairs
Brake Disc Type Externally Vented
Outer Diameter 302mm
Brake Disc Thickness 26mm
Height 50.2mm
Min. thickness 23mm
Inner Diameter 150.7mm
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Hole Pitch/Number 05/10
Wheel Bolt Bore Ø 14.6mm
Supplementary Article/Supplementary Info 2 without wheel hub, without wheel bearing, without wheel studs
Packaging length 32.8cm
Packaging width 32.8cm
Packaging height 12.5cm
Weight 7.3kg
More information »
2 pictures
Brake Disc Type vented
Brake Disc Thickness 26mm
Num. of holes 5
Supplementary Article/Supplementary Info 2 with bolts/screws
Height 50mm
Centering Diameter 68mm
Outer Diameter 302mm
Surface Coated
Min. thickness 23mm
Tightening Torque 110Nm
More information »
Outer Diameter 302mm
Brake Disc Thickness 26mm
Min. thickness 23mm
Height 50.2mm
Bolt Hole Circle Ø 108mm
Brake Disc Type Vented
Centering Diameter 68mm
Num. of holes 5
Surface Oiled
Processing High-carbon
fulfils ECE standard ECE-R90
Drill Ø, up to 14.6mm
More information »
Partnumber: 0 986 478 454
Sold in pairs
Fitting Position Front Axle
Brake Disc Type Externally Vented
Processing High-carbon
Surface Coated
Outer Diameter 302mm
Brake Disc Thickness 26mm
Height 50mm
Rim 5-Hole
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Appr. stamp ECE R90 APPROVED
Min. thickness 23mm
Hole Pitch/Number 10/5
Weight 7.23kg
More information »
2 pictures
Thickness 26mm
Height 50.3mm
Brake Disc Type Vented
Brake Disc Thickness 26mm
Min. thickness 23mm
Processing High-carbon
Num. of holes 5
Centering Diameter 68mm
Supplementary Article/Supplementary Info 2 with bolts/screws
Fitting Position Front Axle
Outer Diameter 302mm
More information »
2 pictures
Fitting Position Front Axle
Brake Disc Type Vented
Brake Disc Thickness 26mm
Outer Diameter 302mm
Num. of holes 5
Bolt Hole Circle Ø 108mm
Min. thickness 23mm
Centering Diameter 68mm
Height 50mm
Rim Size 16Inch
More information »
2 pictures
Outer Diameter 302mm
Brake Disc Thickness 26mm
Min. thickness 23mm
Brake Disc Type Vented
Processing High-carbon
Surface Coated
Num. of holes 5
Bolt Hole Circle Ø 108mm
Height 50mm
Centering Diameter 68mm
Inner Diameter 151mm
Bore Ø 14.4mm
MAPP code available More information »
Partnumber: 24.0326-0107.1
Sold in pairs
Fitting Position Front Axle
Brake Disc Type Externally Vented, Perforated
Processing High-carbon
Surface Coated
Outer Diameter 302mm
Brake Disc Thickness 26mm
Height 50mm
Rim 5-Hole
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Appr. stamp ECE R90 APPROVED
Min. thickness 23mm
Hole Pitch/Number 10/5
Weight 7.23kg
More information »
