VOLVO: 2724045
VOLVO: 272 404 5
VOLVO: 272404.5
VOLVO: 2 724 045
VOLVO: 272404-5
OE number or original number means the number of the whole component or part of it installed on the vehicle on the production line by the car manufacturer. The meaning of the OE number is equivalent to "Genuine Number"
Previous
1 2 Next
cheapest first
expensive first
popular products first
by name
by newest
4 pictures
Fitting Position Front Axle
Brake Disc Type Vented
Brake Disc Thickness 28mm
Outer Diameter 305mm
Surface Oiled
Height 50.3mm
Min. thickness 25mm
Centering Diameter 68mm
Num. of holes 5
Bolt Hole Circle Ø 108mm
Thread Size 16.5
More information »
Rim 5-Hole
Height 50.3mm
Brake Disc Type Vented
Brake Disc Thickness 28mm
Min. thickness 25mm
Outer Diameter 305mm
Centering Diameter 68mm
Bolt Hole Circle Ø 108mm
Surface Coated
More information »
2 pictures
Fitting Position Front Axle
Brake Disc Type Vented
Outer Diameter 304mm
Brake Disc Thickness 28mm
Height 50.3mm
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Num. of holes 5
Min. thickness 25mm
More information »
Outer Diameter 305mm
Brake Disc Thickness 28mm
Height 50.3mm
Num. of holes 5
Bolt Hole Circle Ø 68mm
Min. thickness 25mm
Brake Disc Type Vented
Fitting Position Front Axle
More information »
Partnumber: 6020-4842V-SX
Sold in pairs
3 pictures
Outer Diameter 305mm
Brake Disc Thickness 28mm
Min. thickness 25mm
Height 50.3mm
Rim 5-Hole
Brake Disc Type Vented
Centering Diameter 68mm
Bolt Hole Circle Ø 108mm
Surface Coated
Hub Ø 154mm
More information »
2 pictures
Fitting Position Front Axle
Brake Disc Type Vented
Brake Disc Thickness 28mm
Bolt Hole Circle Ø 108mm
Num. of holes 5
Height 50mm
Centering Diameter 68mm
Surface Coated
Outer Diameter 305mm
More information »
2 pictures
Brake Disc Type Vented
Surface Galvanically coated
Fitting Position Front Axle

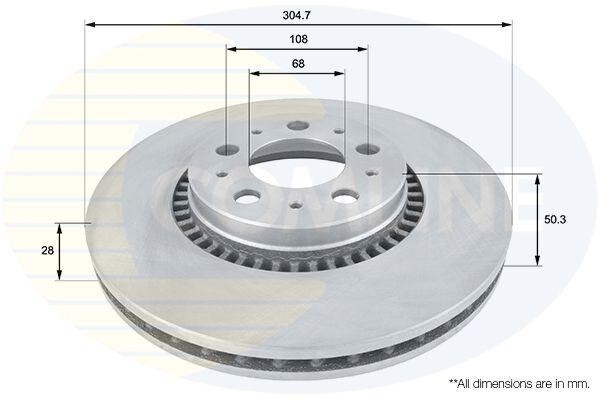

Outer Diameter 304.7mm
Inner Diameter 139.4mm
Centering Diameter 68mm
Height 50.2mm
Brake Disc Thickness 28mm
Min. thickness 25mm
Num. of holes 5
Thread Size 16, 8
Weight 9.2kg
Bolt Hole Circle Ø 108mm
More information »
8 pictures
Fitting Position Front Axle
Height 50.5mm
Brake Disc Type Vented
Brake Disc Thickness 28mm
Material Cast Iron
Processing Untreated
Outer Diameter 305mm
Centering Diameter 68mm
Bolt Hole Circle Ø 108mm
Surface Uncoated
Supplementary Article/Supplementary Info 2 without bolts/screws
Wheel Bolt Bore Ø 16.5mm
More information »
7 pictures
Fitting Position Front Axle
Height 50.5mm
Brake Disc Type Vented
Brake Disc Thickness 28mm
Material Cast Iron
Processing Untreated
Outer Diameter 305mm
Centering Diameter 68mm
Bolt Hole Circle Ø 108mm
Surface Uncoated
Supplementary Article/Supplementary Info 2 without bolts/screws
Wheel Bolt Bore Ø 16.5mm
More information »
Brake Disc Type vented
Outer Diameter 305mm
Brake Disc Thickness 28mm
Height 50.3mm
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Num. of holes 5
Surface Coated
Min. thickness 25mm
Number of bores 5
More information »
Brake Disc Type vented
Num. of holes 5
Outer Diameter 305mm
Min. thickness 25mm
Brake Disc Thickness 28mm
Height 51mm
Centering Diameter 68mm
More information »
2 pictures
Brake Disc Thickness 28mm
Rim 5-Hole
Number of mounting bores 5
Thickness 50.2mm
Outer Diameter 305mm
Bolt Hole Circle Ø 108mm
Surface Coated
Brake Disc Type vented
Fitting Position Front Axle
Min. thickness 25mm
Centering Diameter 68mm
Observe service information Guarantee 3 years guarantee
More information »
Brake Disc Type Vented
Num. of holes 5
Appr. stamp R90 Homologated
Surface Oiled
Outer Diameter 305mm
Brake Disc Thickness 28mm
Min. thickness 25mm
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Height 50.2mm
More information »
2 pictures
Brake Disc Thickness 28mm
Rim 5-Hole
Number of mounting bores 5
Thickness 50mm
Outer Diameter 305mm
Bolt Hole Circle Ø 108mm
Surface Coated
Brake Disc Type vented
Fitting Position Front Axle
Min. thickness 25mm
Centering Diameter 68mm
Observe service information Guarantee 3 years guarantee
More information »
Brake Disc Type Externally Vented
Outer Diameter 305mm
Brake Disc Thickness 28mm
Supplementary Article/Supplementary Info 2 without wheel hub, without wheel studs
Height 50.3mm
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Num. of holes 5
Surface painted
Min. thickness 25mm
More information »
2 pictures
Brake Disc Thickness 28mm
Rim 5-Hole
Number of mounting bores 5
Thickness 50.2mm
Outer Diameter 305mm
Bolt Hole Circle Ø 108mm
Surface Coated
Brake Disc Type vented
Fitting Position Front Axle
Min. thickness 25mm
Centering Diameter 68mm
Guarantee 3 years guarantee
More information »
2 pictures
Brake Disc Type Vented
Brake Disc Thickness 28mm
Surface Coated
Fitting Position Front Axle
Num. of holes 5
Outer Diameter 305mm
2 pictures
Brake Disc Type Vented
Outer Diameter 305mm
Brake Disc Thickness 28mm
Min. thickness 25mm
Centering Diameter 68mm
Height 50.3mm
Num. of holes 5
Thread Size 16, 5
Bolt Hole Circle Ø 108mm
Colour black
Surface painted
Appr. stamp E190R-02 C0185/0553
SVHC No information available, please contact the manufacturer!
More information »
3 pictures
Brake Disc Type vented
Outer Diameter 305mm
Brake Disc Thickness 28mm
Height 50.3mm
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Num. of holes 5
Surface Coated
Min. thickness 25mm
Number of bores 5
More information »
Partnumber: VKBD 80144 V1
Sold in pairs
3 pictures
Rim 10-Hole
Fitting Position Front Axle
Length 304.7mm
Height 50.2mm
Brake Disc Type Vented
Brake Disc Thickness 28mm
Min. thickness 25mm
Outer Diameter 305mm
Centering Diameter 68mm
Surface Oiled
More information »
Partnumber: DP1010.11.0787
Sold in pairs
6 pictures
Outer Diameter 305mm
Brake Disc Thickness 28mm
Min. thickness 25mm
Height 50.2mm
Bolt Hole Circle Ø 108mm
Brake Disc Type Vented
Centering Diameter 68mm
Num. of holes 5
Surface Coated
fulfils ECE standard ECE-R90
Drill Ø, up to 16.8mm
More information »
Partnumber: 0 986 479 C59
Sold in pairs
2 pictures
Brake Disc Thickness 27.9mm
Min. thickness 25mm
Brake Disc Type Vented
Num. of holes 5
Surface Coated
Height 50.3mm
Centering Diameter 68mm
Inner Diameter 139mm
Bolt Hole Circle Ø 108mm
Bore Ø 16.5mm
Fitting Position Front Axle
Outer Diameter 305mm
More information »
6 pictures
Outer Diameter 305mm
Brake Disc Thickness 28mm
Min. thickness 25mm
Height 50.2mm
Bolt Hole Circle Ø 108mm
Brake Disc Type Vented
Centering Diameter 68mm
Num. of holes 5
Surface Oiled
fulfils ECE standard ECE-R90
Drill Ø, up to 16.8mm
More information »
Partnumber: 0 986 478 494
Sold in pairs
Fitting Position Front Axle
Outer Diameter 305mm
Height 50.3mm
Brake Disc Thickness 27.9mm
Min. thickness 25mm
Centering Diameter 68mm
Bolt Hole Circle Ø 108mm
Wheel Bolt Bore Ø 16.5mm
Num. of holes 5
Brake Disc Type Vented
Quantity required 2
More information »
4 pictures
Brake Disc Type Externally Vented
Outer Diameter 305mm
Brake Disc Thickness 28mm
Supplementary Article/Supplementary Info 2 without wheel hub, without wheel studs
Height 50.3mm
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Num. of holes 5
Processing High-carbon
Surface painted
Min. thickness 25mm
More information »
2 pictures
Brake Disc Type Vented
Outer Diameter 305mm
Brake Disc Thickness 28mm
Quantity required 2
Supplementary Article/Supplementary Info 2 with bolts/screws
Version JC
Height 50.3mm
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Num. of holes 5
Quantity Unit Piece
Surface Coated
Appr. stamp R90 Homologated
Weight 19.29kg
Min. thickness 25mm
Tightening Torque 140Nm
Container Type Carton
Packaging length 32.5cm
Packaging width 32.5cm
Packaging height 7.5cm
More information »
2 pictures
Brake Disc Type Vented
Outer Diameter 305mm
Brake Disc Thickness 28mm
Height 50.5mm
Centering Diameter 68mm
Number of mounting bores 5
Surface Coated
Weight 8.21kg
Min. thickness 25mm
More information »
2 pictures
Brake Disc Type vented
Brake Disc Thickness 28mm
Num. of holes 5
Supplementary Article/Supplementary Info 2 with bolts/screws
Height 50mm
Centering Diameter 68mm
Outer Diameter 305mm
Surface Coated
Min. thickness 25mm
Tightening Torque 140Nm
More information »
Fitting Position Front Axle
Brake Disc Type Externally Vented
Surface Coated
Outer Diameter 305mm
Brake Disc Thickness 28mm
Height 50mm
Rim 5-Hole
Bolt Hole Circle Ø 108mm
Centering Diameter 68mm
Appr. stamp ECE R90 APPROVED
Min. thickness 25mm
Hole Pitch/Number 10/5
Weight 9.42kg
More information »
3 pictures
Outer Diameter 305mm
Brake Disc Thickness 28mm
Min. thickness 25mm
Height 50.3mm
Rim 5-Hole
Brake Disc Type Vented
Centering Diameter 68mm
Surface Coated
Net weight 9.1kg
New Part More information »
