OE 5974792 products
ALFA ROMEO: 5974792
AUTOBIANCHI: 5974792
FERRARI: 597 4792
FIAT: 5974792
FIAT: 5 974 792
INNOCENTI: 5974792
LANCIA: 5974792
SEAT: 5974792
VW: 5974792
YUGO: 5974792
ZASTAVA: 5974792
OE number or original number means the number of the whole component or part of it installed on the vehicle on the production line by the car manufacturer. The meaning of the OE number is equivalent to "Genuine Number"

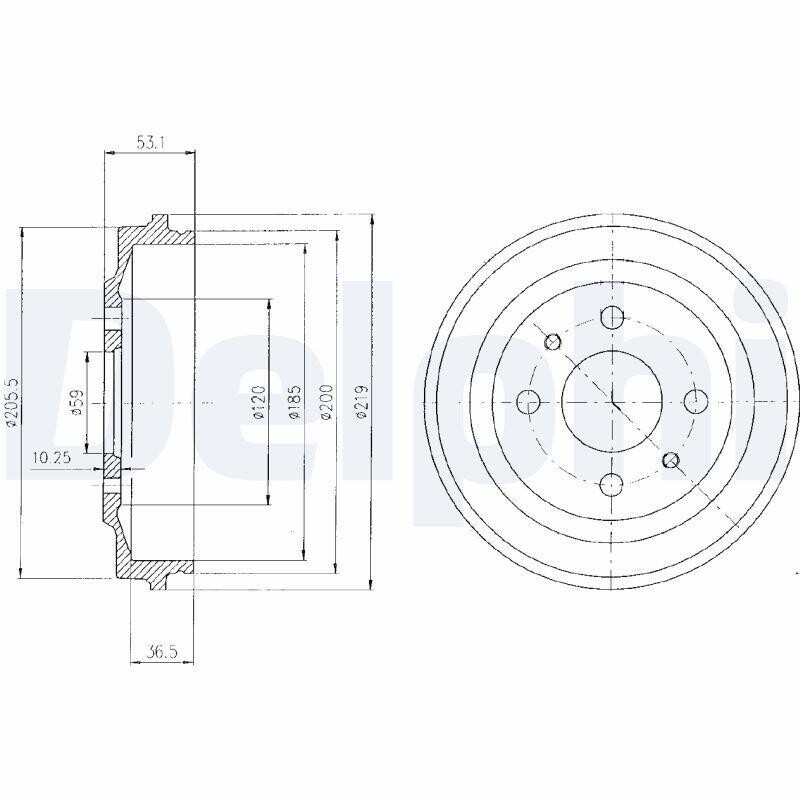

| Inner brake drum height | 36.5mm |
| Centering Diameter | 59mm |
| Number of mounting bores | 2 |
| Inner brake drum diameter | 185mm |
| Total brake drum height | 53.1mm |
| max. brake drum reboring dimension | 186.8mm |
| Rim | 4-Hole |
| More information » | |
| Inner brake drum diameter | 185mm |
| Rim | 4-Hole |
| Total brake drum height | 53.1mm |
| Centering Diameter | 59mm |
| max. brake drum reboring dimension | 186.8mm |
| Inner brake drum height | 36.5mm |
| Number of mounting bores | 2 |
| More information » | |
| Fitting Position | Rear Axle |
| Bolt Hole Circle Ø | 98mm |
| Centering Diameter | 59mm |
| Total brake drum height | 53mm |
| Inner brake drum height | 37mm |
| Inner brake drum diameter | 185mm |
| Outer brake drum diameter | 219mm |
| Num. of holes | 4 |
| max. brake drum reboring dimension | 186.8mm |
| More information » | |
| Appr. stamp | R90 Homologated |
| Inner brake drum diameter | 185mm |
| Inner brake drum height | 37mm |
| Bolt Hole Circle Ø | 98mm |
| Total brake drum height | 53mm |
| Outer brake drum diameter | 219mm |
| Num. of holes | 4 |
| Centering Diameter | 59mm |
| More information » | |
| Fitting Position | Rear Axle |
| Weight | 3.47kg |
| Drum Ø | 185mm |
| Outer brake drum diameter | 219mm |
| max. brake drum reboring dimension | 186.83mm |
| Inner brake drum height | 37mm |
| Total brake drum height | 53.3mm |
| Bolt Hole Circle Ø | 98mm |
| Flange Hole Diameter | 59mm |
| Supplementary Article/Supplementary Info 2 | without ABS sensor ring, without wheel bearing |
| Hole Pitch/Number | 4/6 |
| Bore Ø | 13.6mm |
| More information » | |
| Supplementary Article/Supplementary Info 2 | without ABS sensor ring, without wheel bearing |
| Inner brake drum diameter | 185mm |
| Outer brake drum diameter | 219mm |
| Inner brake drum height | 36mm |
| Total brake drum height | 53mm |
| Num. of holes | 4 |
| Centering Diameter | 59mm |
| Bolt Hole Circle Ø | 98mm |
| More information » | |
| Fitting Position | Rear Axle |
| Outer brake drum diameter | 206mm |
| Inner brake drum height | 37mm |
| Hole Pitch/Number | 04/06 |
| Num. of holes | 4 |
| Centering Diameter | 59mm |
| Bolt Hole Circle Ø | 98mm |
| Inner brake drum diameter | 185mm |
| Thread Size 1 | M10x1, 5 |
| Wheel Bolt Bore Ø | 13.6mm |
| More information » | |
| Inner brake drum diameter | 185mm |
| max. brake drum reboring dimension | 186.8mm |
| Inner brake drum height | 37mm |
| Num. of holes | 4 |
| Bolt Hole Circle Ø | 98mm |
| Bore Ø | 13.6mm |
| Total brake drum height | 53mm |
| Outer brake drum diameter | 219mm |
| Holder Ø | 59mm |
| Appr. stamp | E1 90R-02D0324/1949 |
| MAPP code available | |
| More information » | |
| Inner brake drum diameter | 185mm |
| Inner brake drum height | 37mm |
| Total brake drum height | 53mm |
| Rim | 4-Hole |
| Wheel Hub Ø | 59mm |
| Outer brake drum diameter | 219mm |
| Bolt Hole Circle Ø | 98mm |
| More information » | |
| Total brake drum height | 53mm |
| Centering Diameter | 59mm |
| Outer brake drum diameter | 206mm |
| Bore Ø 1 | 13.5mm |
| Thread Size 2 | M10 x 1, 5 |
| Drum Ø | 185mm |
| max. brake drum reboring dimension | 186.8mm |
| Inner brake drum height | 37mm |
| Num. of holes | 4 |
| Bolt Hole Circle Ø | 98mm |
| SVHC | No information available, please contact the manufacturer! |
| More information » | |
| Fitting Position | Rear Axle |
| Inner brake drum diameter | 185mm |
| Outer brake drum diameter | 219mm |
| Inner brake drum height | 37mm |
| Total brake drum height | 50.3mm |
| Bolt Hole Circle Ø | 98mm |
| Num. of holes | 4 |
| Centering Diameter | 59mm |
| More information » | |
| Outer brake drum diameter | 219mm |
| Total brake drum height | 53mm |
| Inner brake drum diameter | 185mm |
| Inner brake drum height | 37mm |
| max. brake drum reboring dimension | 186.8mm |
| Hole Pitch/Number | 04/06 |
| Bolt Hole Circle Ø | 98mm |
| Centering Diameter | 59mm |
| Wheel Bolt Bore Ø | 13.6mm |
| Supplementary Article/Supplementary Info 2 | without wheel hub, without wheel bearing, without wheel studs |
| Packaging length | 23.3cm |
| Packaging width | 22.9cm |
| Packaging height | 8.6cm |
| Weight | 3.2kg |
| More information » | |
$25.40
$29.90
-16%
Sold in pairs
