ALFA ROMEO: 71773403
FIAT: 71773403
LANCIA: 71773403
OE number or original number means the number of the whole component or part of it installed on the vehicle on the production line by the car manufacturer. The meaning of the OE number is equivalent to "Genuine Number"
cheapest first
expensive first
popular products first
by name
by newest

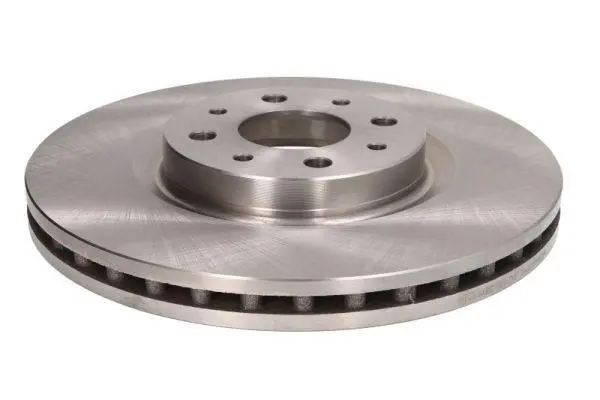

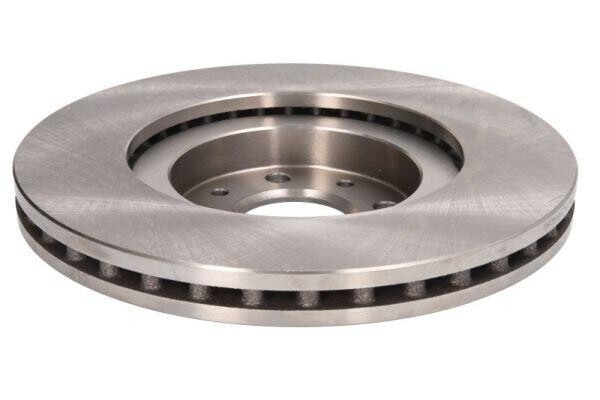

Fitting Position Front Axle
Brake Disc Type Vented
Outer Diameter 281mm
Brake Disc Thickness 26mm
Height 43.6mm
Min. thickness 24.2mm
Centering Diameter 59mm
Bolt Hole Circle Ø 98mm
Surface Oiled
More information »
Num. of holes 4
Outer Diameter 281mm
Centering Diameter 59mm
Brake Disc Thickness 26mm
Height 43.7mm
Brake Disc Type vented
Min. thickness 24.2mm
More information »
4 pictures
Fitting Position Front Axle
Height 43.7mm
Brake Disc Type Vented
Brake Disc Thickness 26.1mm
Material Cast Iron
Processing Untreated
Outer Diameter 280.8mm
Centering Diameter 59mm
Bolt Hole Circle Ø 98mm
Surface Uncoated
Supplementary Article/Supplementary Info 2 without bolts/screws
Wheel Bolt Bore Ø 13.3mm
More information »
3 pictures
Outer Diameter 281mm
Brake Disc Thickness 26mm
Min. thickness 24.2mm
Height 43.5mm
Rim 4-Hole
Brake Disc Type Vented
Centering Diameter 59mm
Bolt Hole Circle Ø 98mm
Surface Coated
Hub Ø 138mm
More information »
2 pictures
Brake Disc Thickness 26mm
Num. of holes 4
Min. thickness 24.2mm
Thread Size 13, 25
Height 43.5mm
Centering Diameter 59mm
Bolt Hole Circle Ø 98mm
Brake Disc Type Vented
Outer Diameter 281mm
Surface Coated
Fitting Position Front Axle
More information »
2 pictures
Brake Disc Type Vented
Surface Galvanically coated
Fitting Position Front Axle
Outer Diameter 281mm
Inner Diameter 127mm
Centering Diameter 59mm
Height 43.7mm
Brake Disc Thickness 26mm
Min. thickness 24.2mm
Num. of holes 4
Thread Size 13, 2
Weight 6.9kg
Bolt Hole Circle Ø 98mm
More information »
9 pictures
Fitting Position Front Axle
Height 43.7mm
Brake Disc Type Vented
Brake Disc Thickness 26.1mm
Material Cast Iron
Processing Untreated
Outer Diameter 280.8mm
Centering Diameter 59mm
Bolt Hole Circle Ø 98mm
Surface Uncoated
Supplementary Article/Supplementary Info 2 without bolts/screws
Wheel Bolt Bore Ø 13.3mm
More information »
Centering Diameter 59mm
Height 43.7mm
Brake Disc Type vented
Brake Disc Thickness 26mm
Min. thickness 24.2mm
Outer Diameter 281mm
Num. of holes 4
More information »
Brake Disc Type Vented
Num. of holes 4
Appr. stamp R90 Homologated
Surface Oiled
Outer Diameter 281mm
Brake Disc Thickness 26mm
Min. thickness 24.2mm
Bolt Hole Circle Ø 98mm
Centering Diameter 59mm
Height 43.5mm
More information »
Brake Disc Type vented
Outer Diameter 281mm
Brake Disc Thickness 26mm
Height 43.6mm
Bolt Hole Circle Ø 98mm
Centering Diameter 59mm
Num. of holes 4
Surface Coated
Min. thickness 24.2mm
Number of bores 4
More information »
Fitting Position Front Axle
Outer Diameter 281mm
Height 43.5mm
Brake Disc Thickness 26mm
Min. thickness 24.2mm
Centering Diameter 59mm
Bolt Hole Circle Ø 98mm
Wheel Bolt Bore Ø 13mm
Num. of holes 4
Brake Disc Type Vented
Quantity required 2
More information »
5 pictures
Brake Disc Type Vented
Outer Diameter 281mm
Brake Disc Thickness 26mm
Centering Diameter 59mm
Height 43.5mm
Num. of holes 4
Bolt Hole Circle Ø 98mm
Min. thickness 24.2mm
Thread Size 13, 25
Colour black
Surface painted
Appr. stamp E1 90R-02 C0176/0575
SVHC No information available, please contact the manufacturer!
More information »
Brake Disc Type vented
Outer Diameter 281mm
Brake Disc Thickness 26mm
Height 43.6mm
Min. thickness 24.2mm
Surface Coated
Inner Diameter 127.1mm
Bolt Hole Circle Ø 98mm
Centering Diameter 59mm
Hole Pitch/Number 04/08
Wheel Bolt Bore Ø 13.2mm
Supplementary Article/Supplementary Info 2 without wheel hub, without wheel bearing, without wheel studs
Packaging length 29.3cm
Packaging width 29.3cm
Packaging height 6.5cm
Weight 6.8kg
More information »
2 pictures
Brake Disc Type vented
Brake Disc Thickness 26mm
Num. of holes 4
Supplementary Article/Supplementary Info 2 with bolts/screws
Height 44mm
Centering Diameter 59mm
Outer Diameter 281mm
Surface Coated
Min. thickness 24.2mm
Tightening Torque 98Nm
More information »
Brake Disc Type vented
Outer Diameter 281mm
Brake Disc Thickness 26mm
Height 43.6mm
Min. thickness 24.2mm
Surface Coated
Inner Diameter 127.1mm
Bolt Hole Circle Ø 98mm
Centering Diameter 59mm
Hole Pitch/Number 04/08
Wheel Bolt Bore Ø 13.2mm
Supplementary Article/Supplementary Info 2 without wheel hub, without wheel bearing, without wheel studs
Packaging length 29.3cm
Packaging width 29.3cm
Packaging height 10.5cm
Weight 6.8kg
More information »
2 pictures
Brake Disc Type Vented
Outer Diameter 281mm
Brake Disc Thickness 26mm
Quantity required 1
Supplementary Article/Supplementary Info 2 with bolts/screws
Version JC
Height 43.5mm
Bolt Hole Circle Ø 98mm
Centering Diameter 59mm
Num. of holes 4
Quantity Unit Set
Surface Coated
Appr. stamp R90 Homologated
Weight 13.84kg
Min. thickness 24.2mm
Tightening Torque 98Nm
Container Type Carton
Packaging length 30cm
Packaging width 30cm
Packaging height 11.5cm
More information »
2 pictures
Brake Disc Type perforated/vented
Brake Disc Thickness 26mm
Num. of holes 4
Supplementary Article/Supplementary Info 2 with bolts/screws
Height 44mm
Centering Diameter 59mm
Outer Diameter 281mm
Processing High-carbon
Surface Coated
Min. thickness 24.5mm
Tightening Torque 98Nm
More information »
3 pictures
Brake Disc Type Vented
Outer Diameter 281mm
Brake Disc Thickness 26mm
Supplementary Article/Supplementary Info 2 with bolts/screws
Height 43.5mm
Bolt Hole Circle Ø 98mm
Centering Diameter 59mm
Num. of holes 4
Quantity Unit Set
Surface Oiled
Appr. stamp R90 homologated
Weight 13.84kg
Min. thickness 24.2mm
Tightening Torque 98Nm
Container Type Carton
Packaging length 28.5cm
Packaging width 28.5cm
Packaging height 9.3cm
More information »
