car differential oil abc: why is it important, how to choose and when to change?

When it comes to car maintenance, most of us immediately think of changing the engine oil, checking the brake pads, or checking the tire pressure. But underneath the car, there's a critical component that does the hard work every time the wheels turn, but whose maintenance is often completely forgotten. It's the differential and the oil that circulates within it.

Differential oil (often referred to as axle oil or gear oil) is a vital fluid in a car's transmission system. Forgetting to replace it can lead to costly repairs, strange noises from under the vehicle, and increased fuel consumption. In this article, we'll dive deep into the world of differential oil: why you need it, which one to choose, and how to change it yourself.

What is a differential and why does it need special oil?

To understand the importance of oil, we must first understand what a differential does.

When a car goes around a corner, the outside wheels have to travel a longer distance than the inside wheels. This means that the outside wheels have to spin faster. If both wheels were rigidly connected to a single axle (like on a go-kart), the inside wheel would start to slip or jump around the corner, which would make the handling terrible and could damage the tires and driveshafts.

A differential is a mechanical "gearbox" between the axles that allows the wheels to rotate at different speeds while transmitting engine power to them.

Why doesn't engine oil fit here?

Inside the differential are gears (worm and plate gears) that operate in extreme conditions. Unlike an engine, where oil is pumped under pressure to the bearings, lubrication in differentials works mainly by splashing - the gears "bath" in oil and splashing it around.

The main difference, however, is the load. Differential gears—especially hypoid gears , which are used in most rear-wheel drive and all-wheel drive cars—are exposed not only to rolling friction but also to strong sliding friction . The teeth slide over each other under enormous pressure. Regular engine oil would simply be squeezed out between the teeth, causing metal-to-metal contact and rapid wear.

Therefore, differential oil (gear oil) is significantly thicker and contains special EP ( extreme pressure) additives that form a chemical protective layer on metal surfaces.

Oil Classifications: GL-4 vs GL-5 and Viscosity

Choosing a differential oil can be overwhelming when you go to the store. Bottles come with numbers like 75w-90, 80w-90, and the designations gl-4 or gl-5. What do they mean and why can making the wrong choice be disastrous?

API classification (GL - gear lubricant)

The most important marking on the bottle is the API (American Petroleum Institute) grade. Today, the two most common standards are:

1. API GL-4:

   • designed for moderate loads.

   • often used in manual transmissions and some lighter differentials.

   • contains fewer sulfur and phosphorus-based EP additives.

   • Why is this important? Manual transmissions often have synchronizers made of "yellow metals" (brass, bronze). Overly aggressive additives can corrode these metals. GL-4 is safe against them.

2. API GL-5:

   • designed for heavily loaded hypoid transmissions (most differentials).

   • contains about twice as many EP additives as GL-4.

   • These additives are usually sulfur compounds, which give the oil a characteristic, pungent, and unpleasant odor.

   • Warning: If you pour GL-5 oil into an older transmission that requires GL-4, the sulfur can start to corrode the bronze synchronizers. But in differentials (where there are no synchronizers), GL-5 is just what you need to protect the gears from wear.

Rule of thumb: if the car manufacturer requires GL-5 differential oil (which is standard), do not use GL-4, as it does not provide adequate protection. if GL-4 is required (e.g. a transaxle ), do not use GL-5 to avoid damaging the synchronizers. There are also "GL-4/GL-5" universal oils that are chemically neutralized and safe for both, but in specific assemblies it is always better to prefer the exact specification.

viscosity (saw)

Similar to motor oils, viscosity indicates the thickness and flow of the oil.

• 75w-90: the most common synthetic viscosity. "75w" indicates good fluidity in the cold (w = winter), "90" indicates protection at operating temperatures. Perfectly suited to the Estonian climate.

• 80w-90: Often mineral or semi-synthetic. Slightly thicker in the cold. Common in older cars and SUVs.

• 75w-140: special oil for heavily loaded differentials (e.g. powerful sports cars, SUVs towing heavy trailers). Remains thick even at very high temperatures.

LSD oils (limited slip differential)

If your car has a limited slip differential (LSD), you need to pay special attention. LSD uses internal clutch packs to lock the wheels in the event of a slip. Regular slippery oil would cause these clutches to slip excessively or, conversely, engage too abruptly, causing "rattling" and vibration when cornering.

• LSD differentials require oil that contains friction modifiers .

• The bottle usually has the designation "ls" (e.g. 75w-90 ls).

• Alternatively, you can use regular oil and add an LSD additive sold in a separate tube.

When should the differential oil be changed?

This is where the most myths circulate. Many car manufacturers claim in their service manuals that the axle oil is a "lifetime fill". But what is the "lifetime" of a car in the eyes of the manufacturer? Usually the warranty period or 150,000 - 200,000 km. If you want to drive your car for longer, you should definitely change the "lifetime" oil.

recommended replacement intervals:

• conventional vehicles: every 50,000 - 60,000 km or every 4-5 years.

• in severe conditions (SUVs, trailer towing, sporty driving): every 30,000 – 40,000 km.

• New cars (break-in): some enthusiasts recommend performing the first change after 3,000–5,000 km to remove metal debris from manufacturing and running-in.

Signs that the oil has outlived its useful life:

1. Howling or whining: especially when accelerating or letting off the gas. This indicates a loss of lubricating properties of the oil and wear of the gears.

2. Vibration when cornering: especially with LSD differentials. If you hear a clatter or feel a vibration when cornering, the friction modifiers have "worn out" of the oil.

3. Dark, sparkly or smelly oil: If the oil is black (like gunk) when you check it, contains metal shavings (sparkles in the light), or has a strong burnt smell, it's time to change it.

differential oil change: step-by-step guide

Changing the differential oil is completely doable at home and requires fewer tools than changing the engine oil. However, there is one golden rule , ignoring which could leave you with a car that is immobile.

necessary tools:

• new oil (check the amount in the manual, usually 1–2 liters per axle).

• oil pump or large syringe (bottles often don't fit under the car).

• Socket wrenches or Allen keys for opening caps.

• oil collection tub.

• rags and brake cleaner.

• if necessary, new sealing washers for the caps.

Work progress:

1. Drive the oil until it warms up. Cold differential oil is thick like honey. Drive the car for 10-15 minutes to allow the oil to become more fluid and drain better with the sediment.

2. Lifting the car: Drive the car into a ditch or jack it up and support it firmly on stands. The car must be level (horizontal) so that you can pour in the correct amount of oil.

3. Golden rule: always open the filler cap first! This is the most important point. There are two caps on the differential: a drain cap at the bottom and a filler cap at the top (on the side). Why? Imagine the situation: you unscrew the bottom cap, drain the old oil... and then you discover that the top filler cap is rusted and won't come off. Now you have a car that has no oil, and you can't pour it in either. You're in a bind. So: first make sure the filler cap opens.

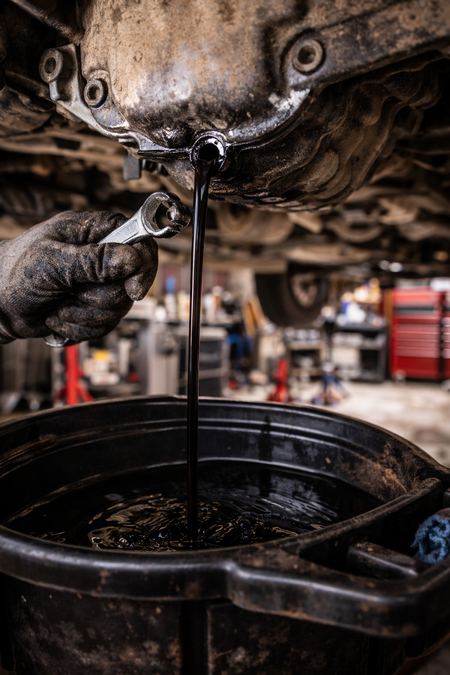

4. Draining the old oil Place a pan under the oil pan and open the drain plug. Be careful, the oil may be hot and smell musty. Check the drain plug: many plugs have a magnet. It is normal to see a fine "metal paste" (like gray sludge) there. However, if you see large pieces of metal or chips, this indicates serious wear or breakage inside the differential. Clean the plug thoroughly.

5. Flush (optional) If the old oil was very dirty, you can pour a little new oil in through the top hole until clean liquid starts to come out from the bottom.

6. Closing the cap Screw the drain plug back on (with a new washer, if provided) and tighten moderately. Do not overtighten – the housings are often made of aluminum or cast iron and can break.

7. Pumping in new oil Due to the shape of the differential, you cannot pour the oil directly from the bottle. Use a special oil pump (which attaches to the bottle) or a large syringe with a hose. Pump in the oil until it starts to drip out of the filler hole. This is the correct level – up to the edge of the filler hole.

8. Finishing Screw the filler cap back on. Clean the housing of any oil residue with brake cleaner (so that it is easy to spot any leaks later).

common mistakes and myths

Myth: "Thicker oil is always better because it provides more protection." Reality: Oil that is too thick cannot get into tight spaces and bearings in cold weather, causing "dry" starting. Oil that is too thick also increases fuel consumption because it is harder for the gears to turn. Always follow the manufacturer's viscosity recommendation.

Error: Water entering the differential. If you have driven your SUV through deep water obstacles (where the bridges were underwater), you should check the oil immediately. A hot differential cools quickly in water, creating a negative pressure inside that can suck water through the seals or into the breather nipple. Water turns the oil into "mayonnaise" and destroys the lubricating properties in minutes.

mistake: using universal oil everywhere. as mentioned, you should not put gl-5 oil in a gearbox with bronze parts (unless specifically permitted). you should also not put regular oil in the lsd differential - it will damage the clutches and create unpleasant noise.

Haldex and other four-wheel drive systems

It is important to note that modern "smart" four-wheel drive systems (such as Volkswagen's Haldex, BMW's XDrive transfer cases, etc.) often use very specific fluids that are not standard differential oils. For example, a Haldex clutch requires a special hydraulic oil that is different from the rear differential oil in the same car. Using the wrong oil for these systems is a surefire way to ruin an expensive piece of equipment. Always check the parts catalog for the exact product code.

to summarize

Changing your differential oil is one of the cheapest and easiest ways to extend the life of your car and avoid repair bills running into thousands of euros. It ensures a quiet ride, a smooth ride, and peace of mind.

Don't wait until the axle starts to "howl" - then it's too late and changing the oil won't help (oil won't regrow damaged metal). Check your car's mileage: if the odometer shows over 100,000 km and you don't know when the axle oil was last changed, then it's time to do this work. Your car will thank you!
