Car oil filter: a small detail on which the life and health of the engine depends

There is an old adage in the automotive world: oil is the blood of the engine and the oil filter is its kidneys. Although car owners often pay great attention to the brand and viscosity of the oil, the oil filter undeservedly takes a back seat. Yet this fist-sized component is the only barrier that protects the engine's high-precision sliding surfaces from metal shavings, soot and abrasive particles. A poor-quality or incorrectly selected filter can nullify the properties of even the most expensive synthetic oil in the world in just a few thousand kilometers.

picture. audi a4 oil filter

In this in-depth article, we'll take an oil filter apart. We'll explore what goes on inside, what are the typical filter faults of different car brands, and what chemicals to use during an oil change to ensure the best possible results. This is a must-read for anyone who wants to maximize the life of their four-wheeled friend's engine.

1. Anatomy of an Oil Filter: More Than Just Paper

From the outside, it may seem that all metal-bodied filters (so-called spin-on filters) are the same, but the reality lies inside. An oil filter is not just a sieve; it is a complex hydraulic device consisting of several critical components.

filtering element (media)

This is the "workhorse" of the filter. In the past, simple cellulose (paper) was used, but in today's era of long-life and thinner oils, synthetic fibers or materials mixed with fiberglass are used. Synthetic media can capture finer particles (even below 20 microns) and does not break down as quickly as paper when exposed to hot oil and aggressive chemicals.

bypass valve

This is a safety mechanism located at the bottom of the filter. Imagine a cold winter morning when the oil is thick as honey. Or a situation where the filter is completely clogged with dirt. If the oil cannot pass through the filter element, the engine would starve and the bearings would fail. The bypass valve opens at a certain pressure and lets the oil bypass the filter, directly into the engine. Yes, this oil is unfiltered, but "dirty oil is better than no oil".

Attention! Different cars have different opening pressures for the bypass valve. If you install the wrong filter, the valve of which opens too early, unfiltered oil will constantly circulate in the engine. If it is too late, oil starvation may occur.

anti-drain back valve (adbv)

This is usually a silicone or rubber membrane that you can see through the holes in the filter. Its job is to keep the filter full of oil even when the engine is stopped. Without this valve, oil would flow back from the filter into the crankcase. During the next start-up, valuable seconds would be wasted refilling the filter, during which the engine would run "dry". A high-quality silicone valve will remain flexible even at -30 degrees, while a cheap rubber valve will harden and let oil through.


oil filter construction

Construction and components of a conventional oil filter

A classic metal-body oil filter is made up of the following critical parts:

• 1. outer shell (housing) – a strong metal casing designed to withstand the operating pressure of the system without leaking and which protects the internal filter element from external damage.
• 2. Relief valve – a safety mechanism that opens in critical situations (for example, if the filter is completely clogged or the oil is too thick due to frost). It allows oil to bypass the filter and flow directly into the engine, thus preventing dangerous oil starvation.
• 3. Filter media – an element made of a special material (cellulose or synthetics) that traps soot and metal particles. Its purpose is to keep the oil clean to minimize wear on engine parts.
• 4. support tube – a perforated metal core that supports the filtration material from the inside, preventing it from collapsing under oil pressure.
• 5. anti-drain valve – a silicone or rubber membrane that prevents oil from flowing back into the crankcase from the filter when the engine is stopped. This ensures that the system immediately has the necessary oil pressure the next time it is started.
• 6. bottom assembly plate – a strong metal base that keeps the filter's shape stable and withstands high pressure without deforming.
• 7. gasket – a rubber ring that creates a hermetic connection between the filter and the engine block, preventing oil leaks from the mounting point.

2. Filter types: from tin can to cartridge

The automotive industry is increasingly moving towards environmental sustainability, which has also changed the design of filters.

• Spin-on metal filter: This is a classic "tin can" that is screwed onto the engine block. Its advantage is easy replacement and robustness. The disadvantage is that when replacing it, the metal housing is also thrown away, which is a burden on the environment.
• Replaceable filter element (cartridge/element): Modern European and Asian cars (BMW, Mercedes, Toyota, VW) have a permanent filter housing (usually plastic or aluminum) attached to the engine. Only the inner paper or fiber element and seals are replaced. This reduces waste, but requires greater care and cleanliness from the changer.

3. car model specifics and typical defects

Each car manufacturer has its own philosophy and engineering solutions. Let's take a closer look at common models and their associated problems in the context of oil filters.

German driving school (BMW, Audi, Mercedes, VW)

BMW (N47, N57, M57 engines):
BMW uses interchangeable elements extensively. A typical problem is the plastic cover of the filter housing. Many B-spare filters do not come with or have poor quality o-rings. Even more critical is the plastic "stem" or centering pin in the middle of the filter cover. Sometimes it is thrown away with the old filter by mistake or breaks due to inept use of force.
consequence: without this stem, the oil will not be directed properly through the filter and the oil pressure may drop critically low, causing the chain tensioners to loosen and the engine to rattle.

vag group (vw, audi, skoda - 1.9 tdi, 2.0 tdi, tsi):
On VAG cars, filters are often conveniently located on top of the engine, but this poses a risk. During the change, oil often drips onto the generator or belts if special rags or chemical cleaners are not used.
DSG gearboxes: It is worth mentioning that DSG gearboxes also have a replaceable filter, which is often located under the battery and is difficult to access. The housing of this filter is made of plastic and requires a specific tightening torque (usually 20 Nm). Overtightening means cracks and oil leakage.

Mercedes-Benz (OM642, OM651):
On Mercedes diesels, the filter element is often attached to a long stem that is part of the cover. A common mistake is incorrect installation of the seals (O-rings). There are several seals on the stem and if they are installed in the wrong groove or left unchanged, the filtered and unfiltered oil will mix.

Japanese and Asian cars (Toyota, Subaru, Nissan)

Toyota (D-4D and gasoline engines):
Toyota has made a big switch from metal filters to replaceable elements. The filter housing is often made of composite plastic or aluminum and is located under the engine.
Problem: You need a special "bowl" or key to remove the plastic housing. If you use a regular crowbar or the wrong key, you will break the plastic ears or unscrew the housing. There is also a small drain plug at the bottom of the housing, the seal of which is often forgotten to be replaced.

subaru:
On Subaru boxer engines (e.g. the EJ series), the oil filter is often located between the exhaust manifold, surrounded by hot pipes ("ring of fire").
Problem: Cheap filters cannot withstand this radiant heat and their seals will bake out, causing leaks directly into the hot manifold (fire hazard). For Subaru, it is strongly recommended to use filters with close to original (OEM) specifications, which have a more heat-resistant seal material.

French and Ford joint creation (PSA/Ford 1.6 HDI/TDCI)

This is probably one of the most infamous examples in history. The 1.6 diesel engine used by Peugeot, Citroen, Ford, Mazda and Volvo.
Critical flaw: in addition to the regular oil filter, this engine has a small strainer hidden in the turbo oil line (inside the banjo bolt). If the service intervals are long and the oil becomes "sour", this small strainer will clog. The regular oil filter may be new, but the turbo will still stay dry and break.
Recommendation: For this engine, specialists often recommend removing this small strainer and relying on a high-quality main oil filter and more frequent oil changes.

4. Maintenance chemicals: what to use when changing the filter?

Changing the oil is not just about draining the old oil and pouring in new. Using the right chemicals ensures cleanliness and tightness. We are not talking about specific brands here, but about the types of products that should be in every garage.

engine flush

Before removing the old oil and filter, special detergents can be used, which are poured into the old oil.
why? they dissolve varnish and sediments that have accumulated between the piston rings and in the oil channels. the floating dirt then remains in the oil and comes out with the old oil. this is especially useful for diesel engines and cars that drive a lot in the city (short runs). nb! always follow the instructions on the bottle (usually 10-15 minutes at idle).

brake cleaner and degreasers

This is a universal tool. When the old filter is removed, the filter housing and surrounding engine block are often oily.
Usage: Clean the filter mounting surface with a pressure washer spray. It must be clean down to the metal so that the new filter seal can seal hermetically. It also helps to detect any leaks later – if the surface is clean, a fresh drop of oil will be immediately visible.

ceramic or copper greases (with caution!)

Some mechanics will coat the bottom cover bolts or the threads of the filter housing (not the gasket!) with heat-resistant grease to prevent corrosion. This is especially important for metal filter housings that are located under the car and get salt.

absorbents and cleaning cloths

Changing the oil is inevitably a dirty job. Special oil-absorbing mats or granules are essential to keep the garage floor clean and prevent slipping.

5. Spare parts brands: who to trust?

The world of filters is diverse and the price differences can be threefold. Why choose a well-known manufacturer?

premium manufacturers (OEM suppliers):
Brands like Mann-Filter , Mahle/Knecht , Bosch , Hengst and Purflux are mainstays of the automotive industry.
Why choose?

• Material: They use high-quality filter paper that does not decompose.
• Design: Purflux, for example, is known for its "zigzag" (chevron) folded paper, which packs 20% more filtering surface area into a small shell.
• valves: their bypass and return valves open at precisely the prescribed pressure.



middle class and packers:
Manufacturers such as fram , champion , wix , blue print (for asian cars) and japanparts offer good value for money. You can often find a premium manufacturer filter in their box, as cross-factory use is common.

low-cost segment:
unknown "no-name" filters are a lottery. Their biggest risk is the filter housing breaking under pressure or the filter element collapsing, which blocks the oil flow completely. A 5 euro saving can mean a 3000 euro engine repair.

6. Golden rules and myths of oil filter replacement

myth: "the filter can be changed more than once during an oil change"

This comes from the Soviet era or the world of trucks, but is completely unacceptable in today's passenger cars. The filter is designed to hold a certain amount of dirt. If you leave the filter unchanged, it will fill up quickly, the bypass valve will open and the engine will essentially run without a filter. The fresh oil will immediately mix with the half liter of old, black oil in the filter.

rule: "you must put oil on the seal"

This is absolutely true. Before installing the spin-on metal filter, dip your finger in new engine oil and lubricate the rubber seal of the filter.
Why? If you screw a dry gasket against dry metal, the gasket will crease, may tear and later it will be impossible to remove the filter. In the case of replaceable elements (o-rings), lubrication is even more important so that the gasket slides into its groove and does not get caught in the screw.

rule: "check the old gasket"

This is the number one mistake beginners make. When you remove the old filter, its rubber seal sometimes gets stuck to the engine block. If you don't notice it and screw the new filter (which has its own seal) on top, you'll end up with a "double seal".
The result: as soon as you start the engine and the oil pressure rises, the oil is forced out from between the two seals. The result is a puddle under the car and a potentially crashed engine in seconds.

rule: "correct tightening torque"

Do not tighten the oil filter with pipe wrenches!

• spin-on filters: turn by hand as hard as you can, and maybe a quarter turn with a wrench.
• Plastic housings: a torque wrench is mandatory here. Usually "25 nm" or "25+5 nm" is written on the cover. Overtightening means a cracked housing and leakage.

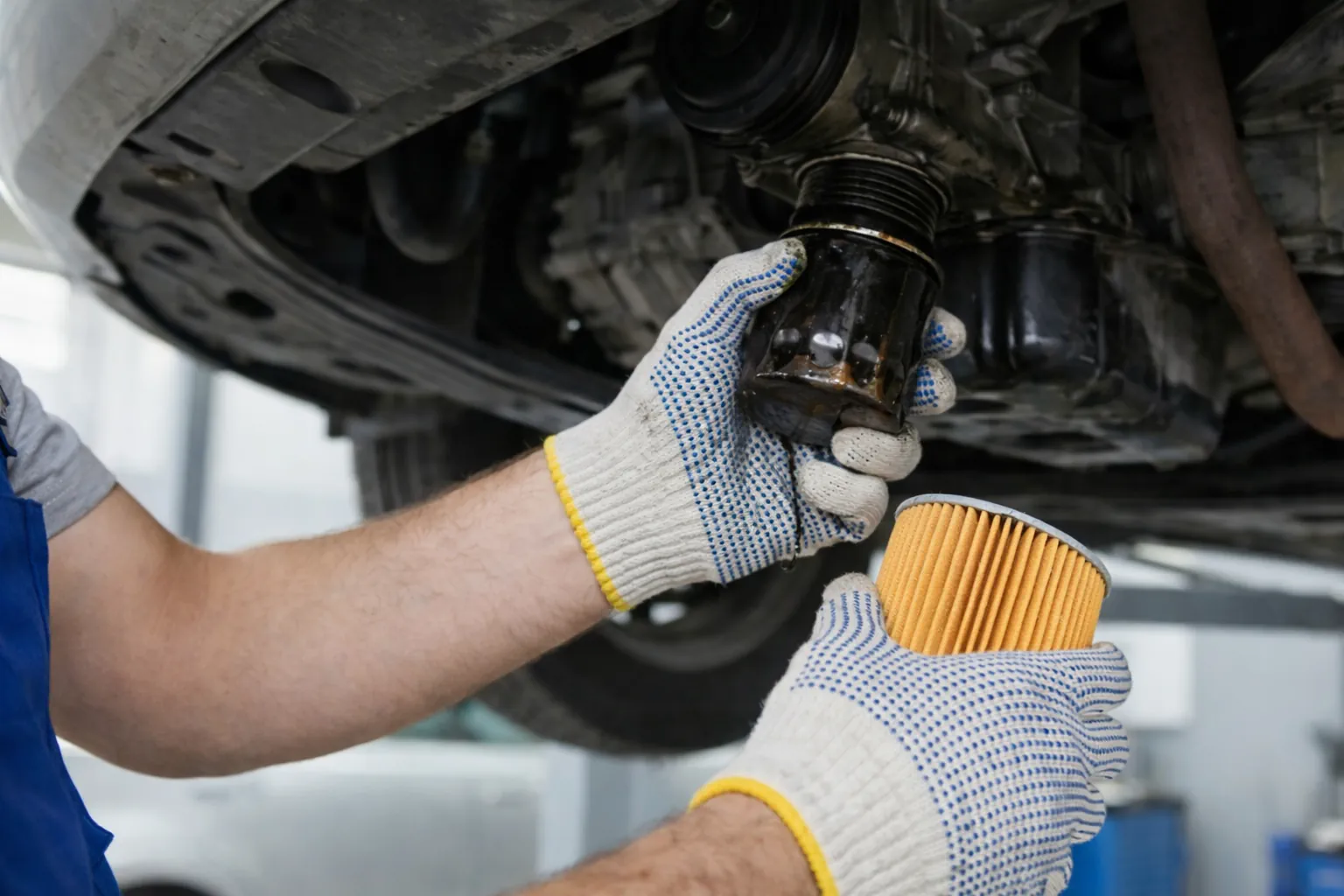

picture. changing the car oil filter

7. Problems after replacement: why is the oil light on?

If the oil pressure light in the instrument cluster remains on for more than 3-5 seconds after changing the oil and filter, turn off the engine immediately.

• Installation error: did you forget the o-ring? did the filter element (cartridge) not fit properly? On some cars, you have to press the filter firmly until you hear a "click".
• Defective filter: rare, but it happens. The bypass valve may be defective at the factory and stuck or in the open position.
• Air plug: Some large systems can develop an air plug. Filling the filter with oil before installation (if the position allows) helps here.

summary

The car oil filter is a masterpiece of engineering that hides more than meets the eye. It is the frontline fighter in protecting your engine from wear and tear. We live in a climate where temperatures fluctuate by 60 degrees (-30 in winter to +30 in summer) and this puts a huge strain on the lubrication system.

Don't compromise on filter quality. Choose products from reputable manufacturers (mann, mahle, bosch, purflux, etc.), use the right cleaning agents when changing, and follow the exact installation instructions. Regular oil and filter changes are the cheapest way to avoid major repairs. Take care of your car's heart and it will thank you with hundreds of thousands of worry-free kilometers.
