Overview of Car Fuel System Injector and Injector Construction

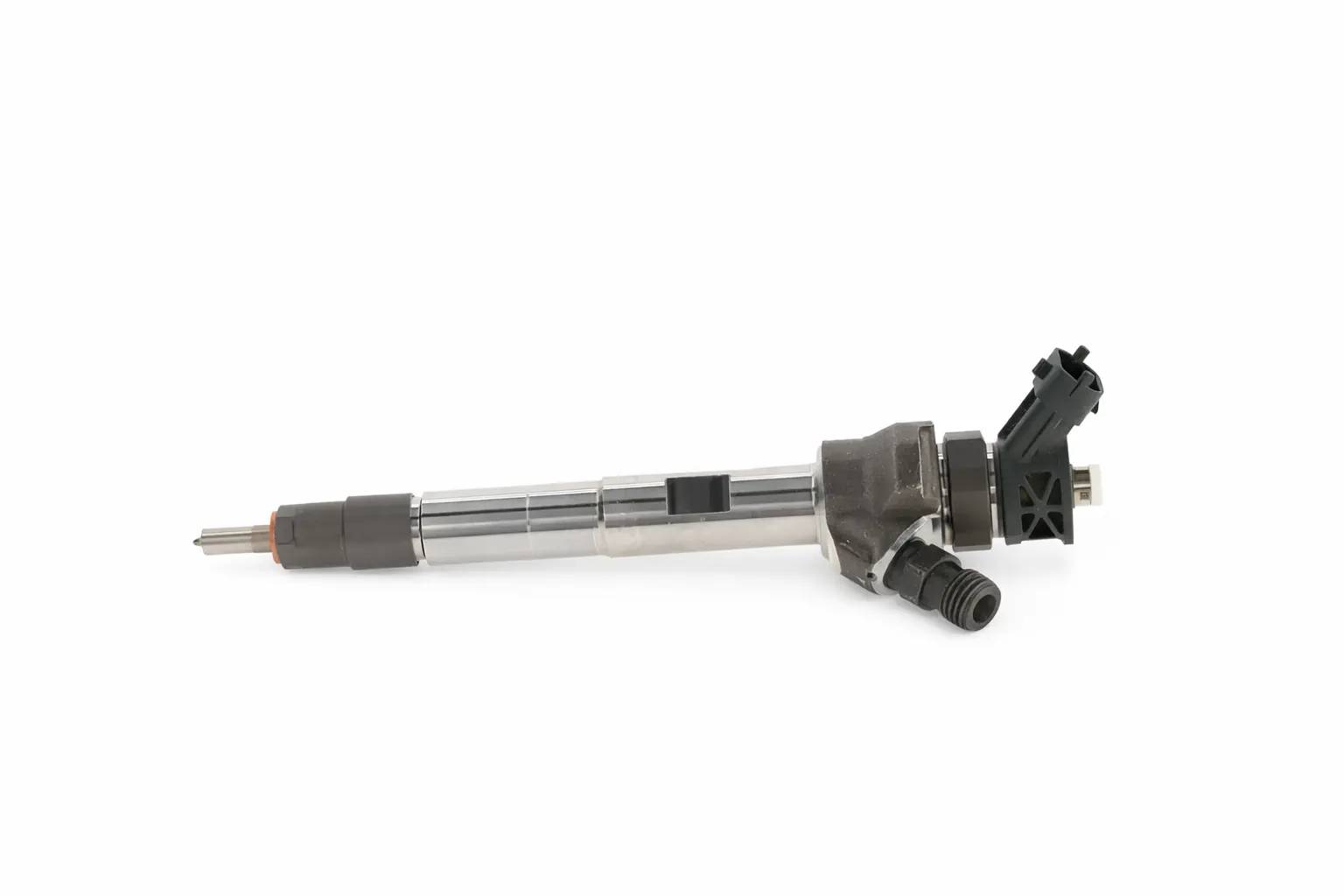

Car fuel injector construction
The fuel system is one of the most important components in any internal combustion engine vehicle. It ensures that the engine receives the required amount of fuel in the right form to operate efficiently and in an environmentally friendly manner. The fuel injector is the central part of this system, responsible for the precise and timely injection of fuel into the engine.
What is a Fuel Injector?
A fuel injector is a device that controls the precise delivery of fuel into the engine. The injector’s purpose is to atomize the fuel into a fine mist to ensure efficient and uniform combustion within the internal combustion engine. Fuel injectors are usually located directly in the intake system, and in some cases, directly in the intake ports, where they spray fuel mixed with air.
The function of a fuel injector is to ensure that the engine receives the right amount of fuel at the right time to produce the necessary energy. Additionally, the injector helps control fuel consumption and emission levels, making it a critical component for engine efficiency and environmental sustainability.
1. Injector body
2. Needle valve (Injector nozzles shown in diagrams 2 and 3 are sold together)
3. Spray tip or nozzle (Injector nozzles shown in diagrams 2 and 3 are sold together)
4. Injector O-ring
5. Spindle
6. Locking nut
7. Return pipe
8. Adjusting screw
9. Injector spring
10. Connector
11. Filter
12. Deflector
13. Pintle cap
Fuel Injector Construction and Working Principle
The construction of a fuel injector is relatively complex, consisting of several components that work together to achieve optimal fuel injection. The working principle of fuel injectors is based on the precise dosing and spraying of fuel according to engine operating conditions. Below are the main components of a fuel injector and their functions.
1. Fuel Injector Body
The injector body is the main component that houses all internal mechanisms controlling fuel movement and spraying. It is typically made of high-quality stainless steel or other corrosion-resistant materials to withstand high operating temperatures and different fuel compositions.
2. Needle Valve
The needle valve is one of the most critical components of the injector. It controls the opening and closing of fuel flow through the injector body. When the valve opens, fuel is allowed into the injector and is then sprayed as a fine mist. The fuel flow control is precisely managed through computer systems that determine how long and how much fuel is injected.
3. Injector Nozzle
The injector nozzle is the component that sprays fuel. It has multiple small holes or channels through which fuel is atomized into a fine mist, ensuring it mixes effectively with air before reaching the engine. The nozzle is designed to ensure uniform and precise fuel flow during each injection cycle.
4. O-rings and Seals
Injectors contain multiple seals and O-rings that prevent fuel leakage. These seals ensure that fuel does not escape from injector connection points and that the system operates cleanly and efficiently. O-rings are typically made from rubber or elastomers that can withstand significant temperature fluctuations and fuel properties.
Electromagnetic Valve and Control
Most modern fuel injectors are equipped with electromagnetic valves that operate electrically. When the engine control unit (ECU) sends a signal, it activates the electromagnetic valve, opening or closing the fuel flow. This mechanism allows precise fuel injection based on engine requirements, such as engine speed, load, and other factors.
Types of Fuel Injectors
Since fuel injectors are critical components in vehicles, different types exist depending on engine design and vehicle requirements:
1. Port Fuel Injection (PFI)
The Port Fuel Injection system uses injectors that spray fuel into the intake manifold, near the intake valves. This is a traditional system commonly used in passenger cars and smaller vehicles. The PFI system helps regulate proper fuel-air mixing before reaching the engine cylinders.
2. Direct Fuel Injection (DFI)
In the Direct Fuel Injection system, fuel is sprayed directly into the engine cylinder rather than into the intake manifold. This ensures precise fuel dosing and better fuel economy, offering greater efficiency and power, especially under high loads.
3. Common Rail Diesel Injection
The Common Rail system is a specialized system used in diesel engines. It enables fuel injection into different cylinders at various times and pressures, depending on engine operating conditions. This ensures better fuel economy and reduces exhaust emissions.
Fuel Injector Maintenance
Over time, fuel injectors can accumulate dirt and deposits, which may hinder their normal operation. Regular maintenance, such as cleaning or replacing fuel injectors when necessary, is essential for maintaining engine efficiency and fuel economy.
Common fuel injector problems include clogging, leaks, or electromagnetic valve failure. These issues can lead to poor engine performance, increased fuel consumption, and higher emissions.
Conclusion
The fuel injector is one of the most crucial components of a car’s fuel system, enabling precise and efficient fuel injection into the engine. Its function is to ensure that fuel reaches the cylinder at the right time and in the right amount, maximizing engine performance and fuel efficiency. The principles and construction of fuel injectors are complex, but all are aimed at ensuring vehicles operate as cleanly and efficiently as possible.
