What is a car junction box and intermediate box?

The transfer case and intermediate gearbox are similar but not exactly the same components. Both are part of the four-wheel-drive (4WD/AWD) or variable drivetrain system, but their functions may differ slightly depending on the vehicle type and usage.

1.Transfer Case

The transfer case is a mechanical component that distributes engine power between the front and rear axles. It is used in four-wheel-drive (4WD) vehicles to switch the drivetrain configuration (e.g., 2WD, 4WD, AWD).

Functions:

• Distributes power between the front and rear axles.
• Enables low and high gear ratios, which is crucial for off-road driving.
• Allows switching four-wheel drive on and off.

Common Usage:

• SUVs, pickup trucks, military, and work vehicles.
• Vehicles that require manually or automatically adjustable drivetrain configurations (e.g., 2H, 4H, 4L options).

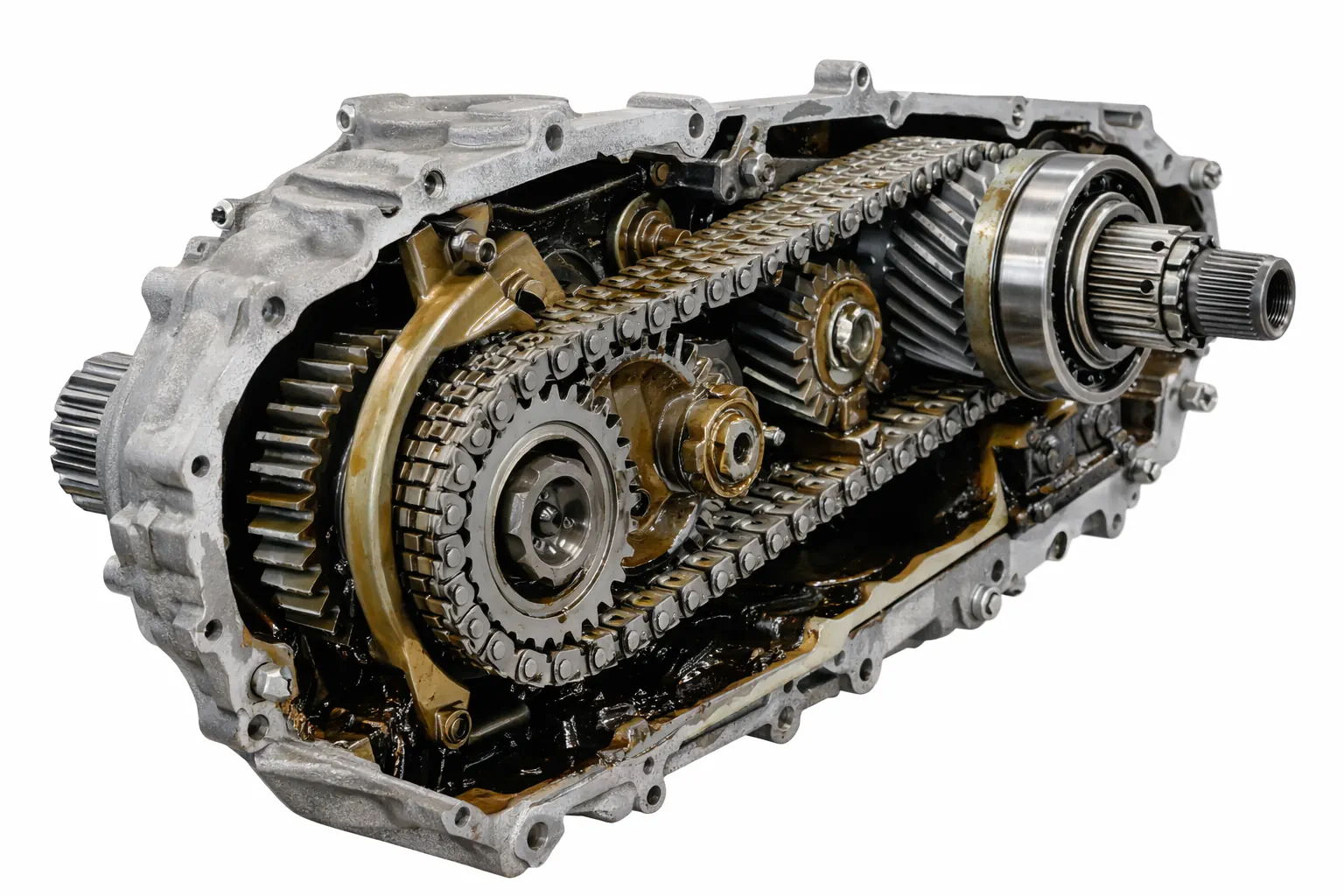

Image: Jeep mechanical transfer case.


2. Transfer Gearbox (Center Differential Unit)

The transfer gearbox, often referred to as the center differential unit, is an integral part of the drivetrain system, mainly used in automatic all-wheel-drive (AWD) vehicles. Unlike a transfer case, it distributes torque as needed between the front and rear axles but usually does not provide low-range gearing.

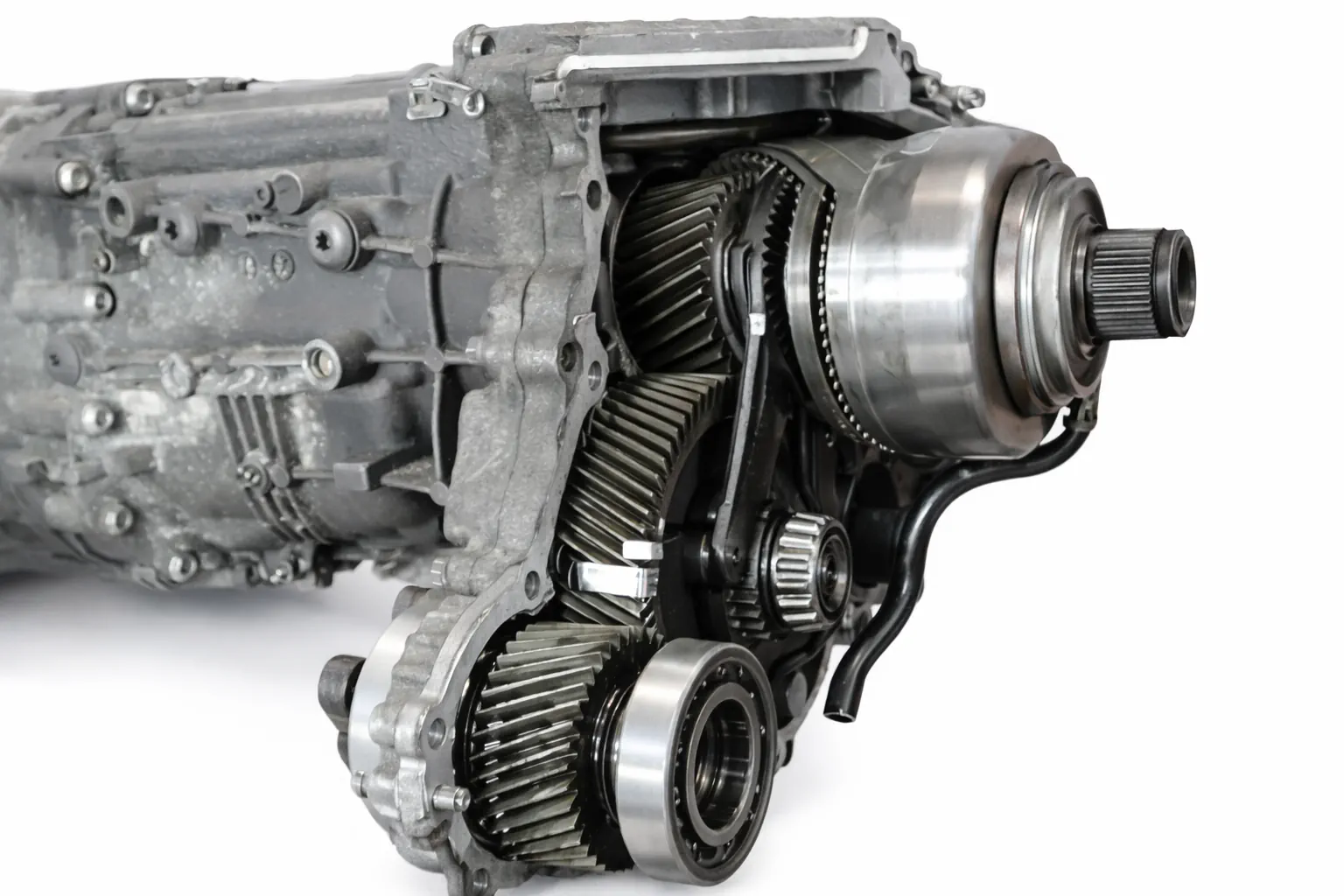

Image: Transmission with transfer case (mounted at the front underside) in a BMW xDrive AWD system using a multi-plate clutch.


Functions:

• Optimizes traction based on road conditions.
• Allows automatic drivetrain adjustments without driver intervention.
• Often uses multi-plate clutch packs to distribute torque dynamically.

Common Usage:

• Crossover SUVs and AWD vehicles (e.g., Audi Quattro, Subaru, BMW xDrive).
• Designed for convenient, electronically controlled AWD systems that do not require manual engagement.



Summary – Main Difference:

Tunnus	Transfer Case	Center Differential / AWD Transfer Case
Usage	Four-wheel drive (4WD) vehicles	Vehicles with AWD system
Power distribution	Manual or automatic (4H, 4L)	Electronic, continuous or variable
Low Range	Yes, used off-road	Usually not
Vehicle type	Off-road, SUVs, pickups	AWD SUVs, sports cars

Both transfer cases and center differentials serve a similar purpose—distributing power between the front and rear axles. However, they are designed for different types of vehicles and driving conditions.
