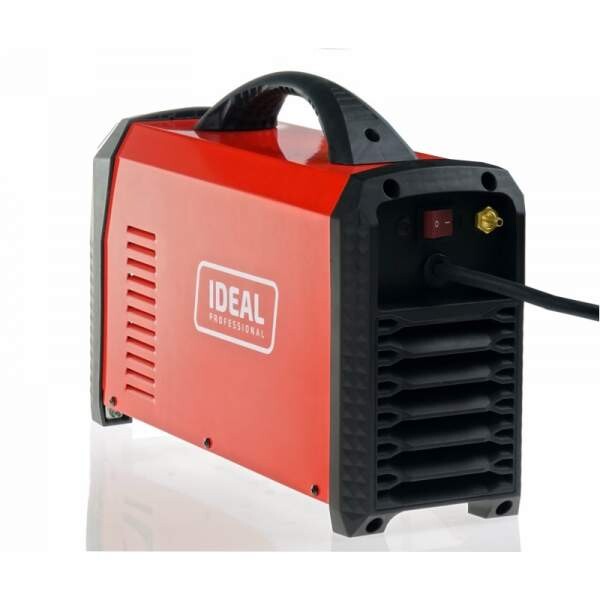

semi-automatic mini mig 160 syn

mini mig 160 syn semi-automatic welding machine, operating on a single-phase 230 v power supply, uses igbt technology
and has a synergy function. It is designed for MIG welding without gas protection (flux) using a 1 kg wire spool for sheets up to 4 mm thick.
It can weld with covered electrodes (DC) and tungsten electrodes (TIG DC lift).
The machine is supplied with a 1 kg 0.8 mm wire spool. The power connector is located on the rear panel.

equipment
standard equipment:
2 m fixed welding torch (1.7 m outside the welding machine),
2 m welding cable 200 a with electrode holder (dx25),
1.6 m grounding cable 200 a with clamp (dx25),
2 m power cable with 230 V plug
, welding disc and brush

technical data
code 103 128
device type mini mig 160 syn
supply voltage [v] 230
no-load voltage [v] 62
welding current adjustment range [a] 35–160
maximum efficiency at 40 °C
en 60974-1 160a@60%
130a@100%
electrode diameter [mm] 2-3.2
flux wire diameter 0.8–0.9/1.0
dimensions [cm] 35x16x28
weight [kg] 5.6
EAN code 5902701751838
