Car fuel line: what it is, how it works, and what are its important roles

The fuel line is one of the most important parts of a car, responsible for transporting fuel from the tank to the engine. It is a key component that ensures that fuel moves safely and efficiently so that the engine can run. With proper operation and maintenance, the fuel line is reliable, but serious problems can arise if it becomes worn, aged or damaged.

In this article, we will explore what a fuel line is, how it works, why it is important to maintain it regularly, and how to prevent it from malfunctioning.

What is a fuel hose?

A fuel hose is a flexible tube through which fuel flows. It is used to transport fuel between different systems: for example, from the fuel tank to the fuel pump and from there to the engine systems. Fuel hoses are usually made of special rubber or elastomeric materials that can withstand high temperatures, pressure and the effects of chemicals. In addition, fuel hoses often have protective covers that give them additional protection against mechanical damage.

Fuel lines play an important role in ensuring fuel flow so that the engine can run efficiently, and they also play an important role in controlling fuel consumption and emissions.

How does a fuel hose work?

The working principle of the fuel hose is simple but very important. The fuel hose connects several important components:

1. fuel tank : fuel is stored in a tank, from which it is fed to the engine via a fuel line.

2. Fuel pumps : Fuel flowing from the fuel tank is directed through the fuel pump. The fuel pump creates the necessary pressure for the fuel to reach the system, including the engine inlet.

3. engine : fuel flows through the fuel line directly into the engine's fuel injection system, where it is atomized for combustion.

Because the fuel line carries fuel, it must withstand constant exposure to fuel chemicals, high temperatures, and often high pressure. With proper serviceability and installation, the fuel line can successfully perform its function, ensuring that fuel moves accurately and quickly in the right direction.

fuel hose characteristics

Fuel hoses are manufactured to meet certain requirements and characteristics to ensure their reliability and safety:

1. Material Durability : Fuel hoses are made of rubber, elastomers or plastic materials that are resistant to fuel and chemicals. These materials must also withstand extreme temperatures, as fuel can vary from cold (during winter) to hot (during engine operation).

2. Flexibility and strength : fuel hoses must be flexible to allow installation in various locations in the car's engine and fuel tank, while at the same time being strong enough to withstand pressure and mechanical damage that may occur during vehicle movement or operation.

3. Size and Length : Different car owner needs and different vehicle configurations require different dimensions of fuel hoses to ensure efficient fuel transport. The size and length of the hose are important to ensure fuel flow.

4. Exhaust systems : Some modern fuel lines also include additional protection mechanisms that reduce fuel evaporation and exhaust system contamination. These fuel lines help prevent fuel loss and reduce environmental impact.

The role of the fuel hose in a car

The fuel hose has several important functions in the operation of the car:

1. Fuel transportation : The fuel line is the part that ensures the smooth and continuous movement of fuel from the fuel tank to the engine. If the line is faulty or clogged, the engine will not receive enough fuel and may experience a stall or loss of performance.

2. Ensuring the correct pressure : The fuel line helps maintain the correct fuel pressure throughout the system to prevent fuel leaks or too low pressure, which can prevent the engine from running properly.

3. Checking fuel consumption : The condition of the fuel hose directly affects the fuel consumption of your car. Old or damaged hoses can cause leaks, which can increase fuel consumption and reduce vehicle efficiency.

4. Fuel safety : The function of the fuel hose is to ensure that fuel flows through the system safely without the risk of fuel leakage, which could cause a fire or other serious problems. Therefore, the quality and condition of the fuel hose is extremely important.

fuel line problems and maintenance

Because the fuel hose constantly carries fuel and is exposed to high temperatures, chemicals and mechanical stress, this component is prone to wear and tear. Here are some common problems that can occur with the fuel hose:

1. Fuel line leaks : If a fuel line is old, cracked, or damaged, it can start to leak. A fuel leak is not only dangerous, but it can also cause engine misfires and reduce fuel efficiency. If a leak occurs, the line should be replaced immediately.

2. Fuel line blockage : If dirt gets into the line or the fuel is of poor quality, it can cause the line to become blocked, which prevents the fuel from moving and can lead to engine failure. Regular fuel filter changes help prevent such problems.

3. Aging and Cracking : Over time, fuel hose materials age, especially if the vehicle is exposed to sunlight for long periods of time or extreme temperatures. Old hoses can begin to crack or harden, leading to breakage. Regular visual inspection and timely replacement are essential.

4. Fuel smell and vaporization : If you smell fuel in your car, it could be a sign of a leaking fuel line or problems in the fuel system. If there are cracks in the fuel line, fuel vapors can be released, which is dangerous and harmful to the environment. The source of the leak should be identified quickly and the problem should be fixed.

How to maintain a fuel hose?

To ensure the long life and reliability of the fuel hose, it is important to check and maintain it regularly:

1. Visual inspection : Check fuel lines during every service. Look for cracks, wear, bends, or traces of fuel that may indicate leaks.

2. Changing the fuel filter : Regularly changing the fuel filter helps prevent dirt from entering the fuel line and fuel system.

3. Timely replacement : If the fuel hose is damaged or worn out, it should be replaced as soon as possible to avoid more serious problems and dangerous situations.

Car fuel line and fuel tank ventilation hose: secrets and dangers of the vehicle's "blood circulation"

As car owners, we often focus on the engine oil, tires, or brake pads—things that need to be replaced regularly. But beneath the floor of your car and between the body panels, there’s a system that’s as critical to the vehicle’s functioning as the circulatory system is to a person. It’s the fuel system, along with its lesser-known companion, the fuel tank ventilation system . These components ensure that fuel reaches the engine from the tank safely, under the proper pressure, and without polluting the environment.

A fuel line failure doesn't just mean your car is left stranded on the side of the road. It also means a real fire hazard, increased fuel consumption and often an unpleasant fuel smell in or around the car. In this comprehensive article, we'll take a closer look at what these systems consist of, why the fuel tank ventilation hose is so important, what are the most common faults in popular car models and how to choose quality spare parts.

Fuel Line Anatomy: More Than Just Hoses

The fuel system of a modern car is far from a simple hose that carries gasoline from the tank to the carburetor. Modern injection systems (especially common rail in diesel engines and OT injection in gasoline engines) operate under enormous pressures. As a result, the pipeline consists of several different parts, each with its own function and material requirements.

1. supply and return pipes

Fuel circulates in a circle. The supply line carries fuel from the pump to the engine (fuel rail). Since the pump often pumps more fuel than the engine needs at the moment, the excess is returned to the tank via the return line (although some newer systems have returnless systems).
These pipes are usually metal (steel or aluminum) under the car's floor to protect them from road bumps and rocks. In the engine compartment, they transition into flexible rubber hoses to compensate for engine vibrations.

2. fuel tank filler neck

This is a thick tube that connects the fuel cap to the fuel tank. It is often made of metal and is one of the biggest sources of corrosion on older cars because it is located in close proximity to the wheel well, where the wheel is constantly kicking up dirt and salt.

3. evolution of materials

In the past, simple steel and ordinary rubber were used. Today, the following are used:

• multilayer polyamide pipes: a plastic that does not rust and is lightweight, but can become brittle with age.
• FKM/ECO rubber hoses: Since modern fuels contain bio-additives (ethanol in petrol, FAME in diesel), the hoses must be chemically resistant. A regular old-school rubber hose will crack quickly under the influence of ethanol.

Fuel tank vent hose and evap system: why is it critical?

Many drivers don't know that the fuel tank needs to "breathe." This is where the fuel tank ventilation hose and, more broadly, the EVAP (evaporative emission control system) system come into play.

Why does the tank need to breathe?

When the fuel pump sucks fuel from the tank into the engine, air must be forced into the tank. If the ventilation is adequate, a vacuum will be created in the tank. In the worst case scenario, a strong vacuum can cause the metal fuel tank to wrinkle (implosion) or – more commonly – the fuel pump has to work excessively to overcome the vacuum and burn out.

On the other hand, when a car is parked in the sun, the fuel expands and evaporates, creating excess pressure. These vapors are toxic and explosive. In the past, they were simply vented into the atmosphere through the cap, but today this is prohibited.

How does the system work?

Fuel vapors are directed through the ventilation hose into a special activated carbon canister. The charcoal binds the fuel vapors. When the engine starts, the purge valve opens and the engine vacuum sucks these vapors from the canister into the intake, where they are burned off. If the ventilation hose is broken or cracked, you will smell a strong smell of gasoline around the car or in the cabin.

Symptoms of failure: when should you worry?

Fuel line and ventilation problems usually make themselves known quite clearly, but they are often ignored.

• Fuel smell: the most obvious sign. If you smell gasoline or diesel, there is a leak somewhere. Diesel does not evaporate as quickly and leaves greasy stains; gasoline evaporates quickly, leaving only the smell.
• hissing sound when opening the cap: If you hear a very loud and long hissing sound (vacuum) when opening the fuel cap at a gas station, the fuel tank ventilation hose or valve is bad.
• increased fuel consumption: a leak means a loss.
• Difficult starting: if the fuel in the fuel line drops (due to a check valve or leak), the starter has to crank the engine for a long time to build up pressure again.
• Check engine light: A leak in the EVAP system (e.g. a cracked ventilation hose) is immediately detected by the car's brain and issues an error code (typically P0440, P0442, P0455).

typical errors specific to car models

Although the fuel system is universal, certain car makes and models have developed specific weaknesses.

1. BMW (3 Series E46, 5 Series E39/E60, 7 Series E65)

Bavarian cars have several common defects related to the fuel line.

• Underbody pipes: BMWs have metal fuel pipes running under the floor behind plastic covers. Dirt and moisture accumulate there and don't dry out. This results in the pipes rusting right at the mounting brackets. The leak is often invisible until there is a puddle on the ground.
• Vent Hoses: On older gasoline engines, the fuel tank vent hoses and valves under the intake manifold become brittle, causing vacuum leaks and rough idling.

2. subaru (impreza, forester, legacy)

"Gasoline smell in cold weather" is a familiar theme for Subaru owners.

• Fuel tank filler pipe: this is a classic mistake. The filler pipe is located in the rear wheel well and is only covered with a plastic cover that collects mud. The pipe rusts through and starts leaking fuel when refueling.
• Fuel lines under the intake: In cold weather (below -10°C), the rubber connections on the fuel lines under the intake manifold contract and start to leak. As it warms up, the metal expands and the leak disappears, but the smell remains.

3. mercedes-benz (e-class w211, c-class w203/w204)

Mercedes has a problem with the fuel tank seals and sensors under the rear seat.

• Fuel pump seals: Owners often notice a strong smell of gasoline in the cabin, especially when the tank is full. This is due to the wear and tear of the fuel pump or level sensor cover seals located under the rear seat, or the covers themselves cracking.

4. Volkswagen Group (Audi A4/A6, VW Passat - TDI engines)

In the case of diesel engines, the return hoses are a concern.

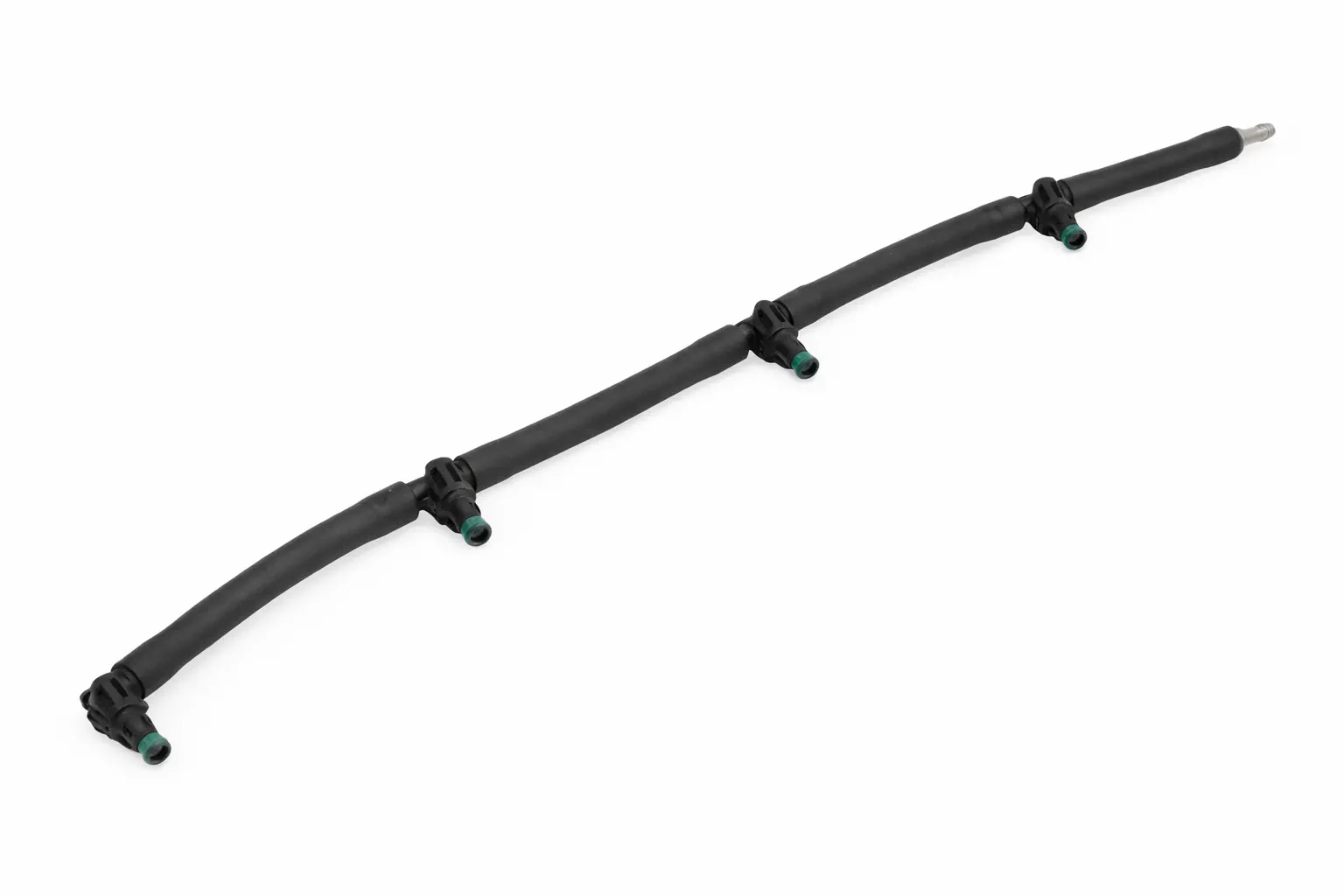

• Injector backflow: The rubber hoses that connect the injectors to each other (backflow) are exposed to heat and become rock hard. They start leaking diesel directly onto the hot engine block.
• Tandem pump: PD (pump-nozzle) engines often leak fuel from the vacuum pump (tandem pump) or vice versa, and the seals between the pump and the block also leak.

5. opel (astra h, zafira b, insignia)

Opel has problems with quick connectors on fuel lines and plastic lines becoming brittle in the engine compartment. Diesel engines (e.g. 1.7 and 1.9 CDTI) are prone to fuel filter housing leaks, which draw air into the system and cause the car to not start in the morning.

hazards: biofuel and old hoses

An important issue that cannot be ignored is the impact of modern fuels on older cars (produced before the 2000s). Modern gasoline (e5, e10) contains ethanol. Ethanol is hygroscopic (absorbs water) and is aggressive towards certain types of rubber.

Old fuel hoses that are not designed for biofuel will start to decay from the inside. Rubber chips will clog injectors and the fuel filter. When replacing hoses on an older car, always make sure that the new hose meets the SAE J30 R9 standard or higher (resistant to high pressure and chemical attack).

spare parts selection: quality is security

Never compromise on quality when repairing a fuel system. Leaking coolant creates steam, leaking fuel creates fire.

trusted brands

There are many manufacturers on the market, but when it comes to fuel system components, it is worth giving preference to those who also supply parts to car factories (OEM quality):

• Gates: Known primarily for belts, Gates also produces world-class fuel hoses (both by the metre and in pre-formed hoses). Their "Barricade" series of hoses are some of the best on the market.
• bosch: fuel pumps, sensors, valves and filters. bosch is a pioneer in injection systems and a solid choice.
• continental (contitech): very high-quality rubber hoses and pipes.
• Pierburg: specialist in fuel valves, vacuum pumps and EGR systems. If you need a fuel tank vent valve, Pierburg is often in the original manufacturer's box.
• vaico / vemo: offer a wide range of specific fuel tank caps, breather hoses and repair kits for German cars.
• metalcaucho: rubber parts with a good price-quality ratio, including filler pipe connectors.

maintenance and prevention

The fuel line is generally maintenance-free until it breaks, but some actions can help prevent problems:

1. Don't fill it to the "cap": when the gun "clicks" shut, don't try to force a few more liters into the tank. This will flood the fuel tank's ventilation system and damage the activated carbon canister, which is only designed for vapors, not liquid.
2. Underbody wash: Wash the bottom of your car regularly in winter to prevent salt from chewing into the fuel lines (especially between the clamps).
3. Visual inspection: When changing the oil, ask the mechanic to also take a look at the fuel lines. It is better to replace a rusty line proactively than to wait for a tow truck on the side of the road.
4. Fuel filter: change the filter regularly. A clogged filter increases the pressure in the pump and piping, finding the weakest links.

summary

Your car's fuel line and fuel tank vent hose are the hidden heroes that keep your car running smoothly. Ignoring them can lead to costly repairs and dangerous situations. Whether it's a rusty Subaru filler pipe, a brittle BMW vent hose, or just an old hose that can't handle modern fuel, the solution is always the same: high-quality diagnostics and proper spare parts from reputable manufacturers like Gates or Bosch. Take care of your car's "blood circulation" and it will serve you faithfully for hundreds of thousands of kilometers.
