What is a Car Air Conditioning System?

The car air conditioning system (Car Air Conditioner) is a system that ensures a comfortable temperature inside the vehicle by removing excess heat and humidity. The air conditioning system operates in a closed circuit, using a special refrigerant (Freon) to maintain the cooling cycle.

How Does a Car Air Conditioning System Work?

The air conditioning system works on the principle of heat transfer, where heat is removed from the vehicle's interior and released into the external environment. The main stages of this process are:

1. Compression of the refrigerant: The air conditioning compressor increases the pressure and temperature of the refrigerant.
2. Heat dissipation: The condenser removes the heat from the high-pressure gas, converting it into a liquid.
3. Expansion of the refrigerant: The expansion valve lowers the pressure of the liquid refrigerant, cooling it.
4. Heat absorption: The evaporator absorbs heat from the cabin, turning the liquid refrigerant back into gas.
5. The cycle continues: The compressor pulls back the heat-absorbed refrigerant, and the process repeats.
6.

Car Air Conditioning / A/C System Diagram

1.

1. A/C Condenser Fan
2. A/C Condenser
3. A/C Compressor
4. Expansion Valve
5. Cabin Fan
6. Evaporator
7. Filter-Drier


Key Components of the Car Air Conditioning System

The car air conditioning system consists of several essential components that work in sync to cool the vehicle:

1. A/C Condenser Fan

• Helps remove heat from the condenser, accelerating refrigerant cooling.
• Located near the radiator and activates as needed.

2. A/C Condenser

• Cools the hot, high-pressure gas from the compressor, turning it into a liquid.
• Ensures the refrigerant is at a lower temperature before entering the expansion valve.

3. A/C Compressor

• An engine-driven pump that compresses the refrigerant and circulates it through the system.
• Plays a vital role in the entire cooling process.

4. Expansion Valve

• Regulates the amount of refrigerant entering the evaporator.
• Reduces the pressure and temperature of the high-pressure liquid.

5. Cabin Fan

• Circulates air inside the cabin and distributes the cooled air throughout the vehicle.
• Located behind the dashboard and operates at different speeds.

6. Evaporator

• Absorbs heat and moisture from the cabin, cooling the air inside the vehicle.
• Triggers the phase change of the refrigerant, turning it back into gas.

7. Filter-Drier

• Removes moisture and potential contaminants from the refrigerant circulation.
• Extends the lifespan of the entire air conditioning system and reduces the risk of blockages.

Car Air Conditioning Maintenance and Troubleshooting

To ensure the efficient operation of the car’s air conditioning system, regular maintenance and inspections are necessary. Some key maintenance tasks include:

• Regular refrigerant level checks and refills.
• Cleaning or replacing filters.
• Cleaning fans and the condenser from dirt and debris.
• Inspecting the air conditioning compressor for leaks and unusual noises.

Common Issues and Solutions

1. The air conditioning system does not cool properly:

• Possible cause: Low refrigerant level, clogged filter-drier, or faulty compressor.

2. Unpleasant odor from the cabin vents:

• Possible cause: Mold and bacteria buildup in the evaporator, requiring disinfection. Here you will find various air conditioning cleaning products.

3. Air conditioning fan does not work:

• Possible cause: Faulty fan motor or electrical issues.

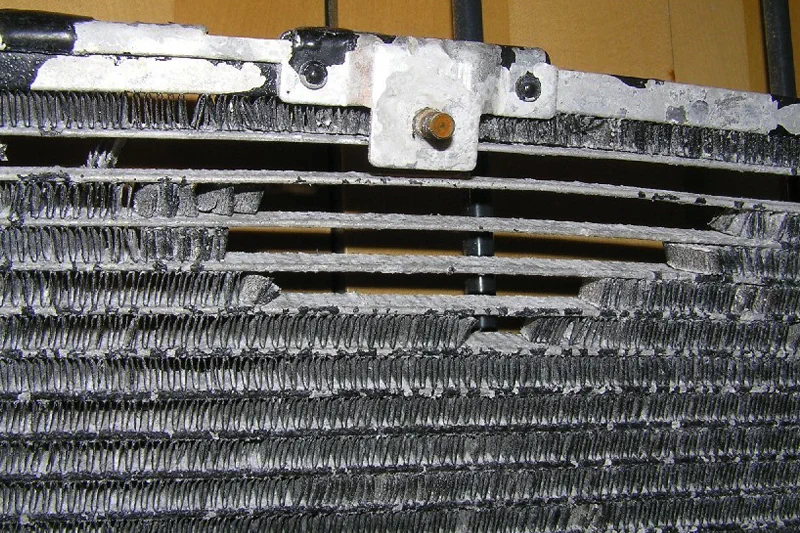

Figure. Car air conditioning condenser (radiator) with damaged fins.



The most common A/C system faults by car model – an in-depth overview

Car air conditioning is nowadays a standard comfort feature, but at the same time it is one of the most complex and sensitive systems in a vehicle. The A/C system consists of several closely interconnected components, and a failure in one part often affects the performance of the entire system. In practice, it has become clear that certain car models and engine variants experience air-conditioning faults more frequently than average. These are commonly referred to as typical A/C faults.

The following provides a thorough and neutral overview of:

• the most common typical A/C faults,

• which car models they occur on more often,

• which symptoms indicate a specific problem, and how to recognize and prevent these faults early.



Why do typical A/C faults occur?

Typical air-conditioning faults do not indicate poor quality. In most cases they are caused by:

• design compromises

• a cramped engine bay

• the use of lightweight materials

• high thermal load

• long service intervals

These factors are repeated on the same platforms and engines, which is why the failures also tend to recur in a similar form.



Typical A/C system faults on the most common car models

Volkswagen / Škoda / SEAT / Audi / Audi

Common problems

• corrosion and leakage of the condenser

• failure of the compressor control valve

• faults in pressure sensors

Typical symptoms

• the A/C cools at first, then the effect disappears

• the system operates intermittently

• refrigerant is slowly lost

Causes

• the condenser is located in a very exposed position

• moisture and dirt accumulate

• corrosion of aluminium components

These problems often appear even before complete compressor failure.



BMW

Common problems

• evaporator leakage

• unpleasant odours from the A/C system

• sensitivity of pressure sensors

Typical symptoms

• the A/C does not cool even though the system is charged

• a musty smell appears in the cabin

• refrigerant is lost with no visible leak

Causes

• the evaporator operates in a warm and humid environment

• complex routing of the pipework

• high operating temperature of the system

Evaporator replacement is labour-intensive and requires accurate diagnostics.



Mercedes-Benz

Common problems

• leakage of the condenser and pipework

• faults in fan control

• failure of pressure sensors

Typical symptoms

• the A/C does not operate while the car is stationary

• cooling performance is lost in traffic jams

• the fan runs continuously

Causes

• complex control logic

• interaction between multiple fans

• high thermal load

The problem is often not mechanical but electronic in nature.



Ford

Common problems

• failure of the compressor clutch

• refrigerant leakage in the pipework

• faults in pressure switches

Typical symptoms

• the A/C switches on and off

• cool air disappears under load

• the compressor does not engage

Causes

• wear of the clutch

• vibration

• exceeding service intervals

Vehicles with high mileage are particularly sensitive to these issues.



Peugeot / Citroën

Common problems

• internal failure of the compressor

• clogging of the expansion valve

• evaporator odours

Typical symptoms

• uneven cooling performance

• noise from the system

• unpleasant smell in the cabin

Causes

• long service intervals

• ageing of oil and refrigerant

• moisture in the system

These problems often occur as a combined effect of several minor faults.




Opel

Common problems

• failure of pressure sensors

• leakage of the condenser

• wear of pipework connections

Typical symptoms

• the A/C does not switch on

• fault messages in the climate system

• complete lack of cooling

Causes

• sensor sensitivity

• vibration

• corrosion at connection points

​​

Toyota / Lexus

Common problems

• evaporator odours

• surface corrosion of the condenser

• pressure sensor faults

Typical symptoms

• the A/C operates but cooling performance is weak

• a damp smell in the cabin

• windows tend to fog up

Causes

• moisture in the evaporator

• calm driving style

• rare use of the A/C system

These systems are generally durable, but they require regular maintenance.



The most common typical A/C faults regardless of car model

• slow loss of refrigerant

• bacterial contamination of the evaporator

• corrosion of the condenser

• ageing of O-rings

• failure of pressure sensors

These problems recur irrespective of brand if maintenance is insufficient.



How to distinguish a typical fault symptom from a random failure?

Indicators of a typical fault:

• the problem returns after repair

• the same failure appears on many cars of the same model

• symptoms occur in specific conditions

Random failure:

• is related to a particular damage

• does not recur in a systematic way

How to prevent typical A/C faults?

Practical recommendations:

• use the air conditioning regularly, even during cooler periods

• replace the cabin filter on time

• service the A/C system periodically

• react early to weakening cooling performance

• do not ignore unpleasant odours

Preventive maintenance is always more affordable than major repair work.



​​​​Conclusion

Car air conditioning is an important component in terms of vehicle comfort and operates through several synchronized parts. Regular maintenance and timely repair of problems ensure effective cooling and long-term reliability. If a drop in cooling efficiency or other faults occur, it is advisable to have the A/C system inspected and serviced by a specialist.
