Car clutch system and its parts – a comprehensive overview

The car's clutch system is an important mechanism that ensures the disconnection and reconnection of the engine and transmission, allowing for smooth gear changes and effective control of the power transmission between the engine and the wheels. The clutch system consists of several components, the proper functioning of which ensures comfortable and safe use of the vehicle. In this article, we will provide a comprehensive overview of the parts of the clutch system, their functions and importance.

Figure: Basic parts of the clutch

1. Clutch Cover / Clutch Assembly (Clutch)
2. Slave Cylinder (Clutch Slave Cylinder)
3. Master Cylinder (Clutch Master Cylinder)
4. Clutch Pedal
5. Hydraulic Fluid Pipe

1. Basic parts of the clutch system and their functions

1.1 Clutch Disc

The clutch disc is a central component responsible for transmitting engine torque to the transmission.

• Function: It is pressed between the flywheel and clutch cover to transfer the engine’s power to the gearbox.
• Composition: Made of friction linings, springs, and an internal metal frame.
• Common Issues: Worn-out friction linings causing a slipping clutch, leading to power loss.



1.2 Flywheel

The flywheel is a heavy metal plate attached to the engine’s crankshaft.

• Function: Helps maintain engine torque, ensures smooth power transmission, and keeps the clutch disc in proper alignment.
• Common Issues: Worn or overheated flywheel can cause uneven power transmission and vibrations.



1.3 Pressure Plate

The clutch pressure plate is a mechanical component that presses the clutch disc against the flywheel.

• Function: Creates the necessary pressure for the clutch disc to transmit engine torque to the gearbox.
• Common Issues: Over time, springs can wear out, leading to insufficient pressure and clutch slipping.

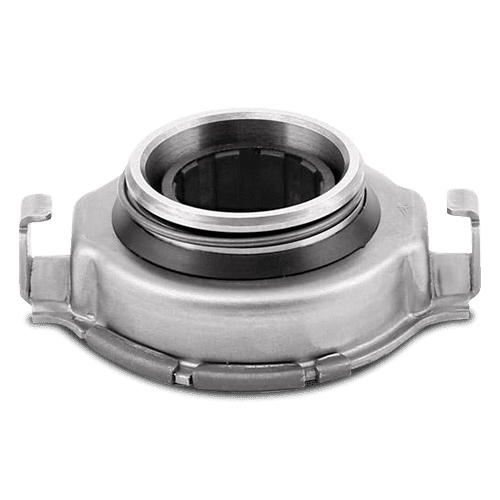

1.4 Release Bearing

The clutch release bearing is a crucial moving part that transfers force from the clutch fork to the pressure plate.

• Function: When the driver presses the clutch pedal, the release bearing pushes against the pressure plate, disengaging the clutch and cutting off power transmission.
• Common Issues: Worn-out ball bearings causing squeaking or grinding noise.


1.5 Release Fork

The clutch fork is a metal lever that controls the release bearing.

• Function: Directs hydraulic or mechanical movement to disengage the clutch.
• Common Issues: Mechanical wear or bending may cause incomplete clutch disengagement.



2. Clutch Control System Components

2.1 Clutch Cylinders-Clutch Master & Slave Cylinder

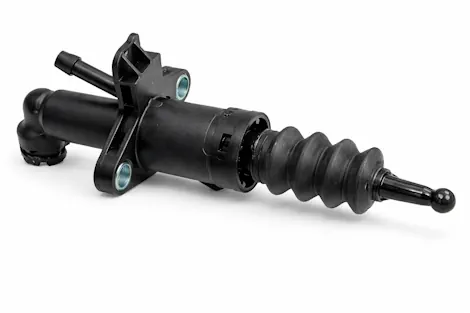

2.1.1 Master Cylinder

1. Function:

   • The clutch master cylinder generates hydraulic pressure. When the driver presses the clutch pedal, the master cylinder pushes the clutch fluid through the system, creating pressure.

2. Location:

   • It is positioned near the engine bay and connected to the clutch pedal, receiving direct force from the driver’s foot.

3. Components:

   • Piston and seals: Create and maintain pressure.
   • Fluid reservoir: Stores hydraulic fluid.

4. Role in the system:

   • Converts mechanical force (pedal press) into hydraulic pressure, which the slave cylinder uses to activate the clutch.

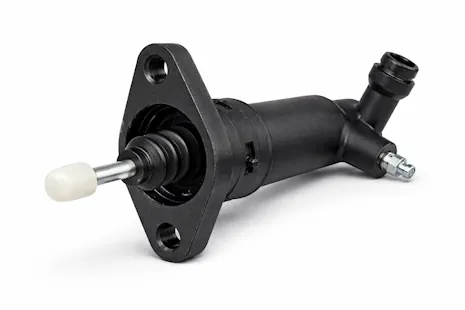

2.1.2 Clutch Slave Cylinder

1. Function:

   • The clutch slave cylinder is responsible for converting hydraulic pressure into mechanical movement. It moves the clutch fork or release bearing to activate the clutch.

2. Location:

   • Located near the gearbox and the clutch mechanism, connected to the master cylinder via a hose or pipe.

3. Components:

   • Piston: Converts fluid pressure into physical movement.
   • Pipe connection: Receives fluid from the master cylinder.

4. Role in the system:

   • Performs the actual mechanical disengagement of the clutch, allowing gear changes.



Main Differences Between the Master and Slave Cylinder:

Criterion	Clutch Master Cylinder	Clutch Slave Cylinder
Location	Near the clutch pedal, in the engine bay	Near the gearbox, at the clutch mechanism
Function	Generates and directs hydraulic pressure	Converts hydraulic pressure into mechanical movement
Driver’s Influence	Directly connected to the pedal movement	Processes the pressure received from the master cylinder
System Role	First stage of the hydraulic system	Final stage of the hydraulic system



Common Issues:

1. Clutch Master Cylinder:

   • Leaks: Due to worn seals.
   • Air in the system: Can cause a "soft" pedal feel.
   • Pressure loss: A faulty master cylinder cannot generate pressure.

2. Clutch Slave Cylinder:

   • Fluid leaks: May lead to total clutch failure.
   • Mechanical failure: Worn piston or seals can prevent movement.

  Summary

• The clutch master cylinder initiates the hydraulic pressure for clutch operation, converting pedal pressure into pressure.
• The clutch slave cylinder applies this pressure to move the clutch mechanism.

The two work together to ensure smooth and efficient clutch operation.

2.2 Clutch Cable

Some vehicles use a clutch cable instead of a hydraulic system.

• Function: Transfers mechanical movement directly to the clutch fork.
• Common Issues: Over time, the cable may stretch or break, causing clutch failure.


2.3 Hoses, Pipes

Hydraulic hoses and pipes transport hydraulic fluid in the clutch system.

• Function: Ensure the flow of hydraulic fluid from the master cylinder to the slave cylinder.
• Common Issues: Leaks may allow air into the system, reducing clutch efficiency.


2.4 Hydraulic Fluid

Hydraulic fluid is an essential element that transmits force in the clutch mechanism.

• Function: Provides hydraulic pressure to engage the clutch.
• Common Issues: Low fluid levels or contamination may cause a soft clutch or failure.



3. Additional Clutch Components

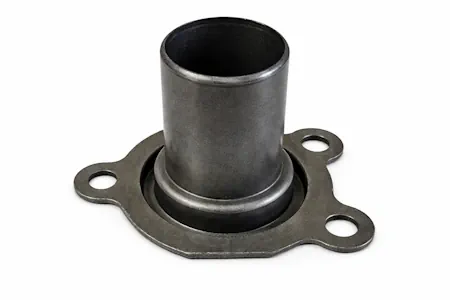

3.1 Clutch Sleeve

The clutch sleeve or release mechanism housing holds the release bearing in the correct position.

• Function: Ensures proper movement of the release bearing.
• Common Issues: A worn sleeve can cause irregular movement and clutch malfunctions.

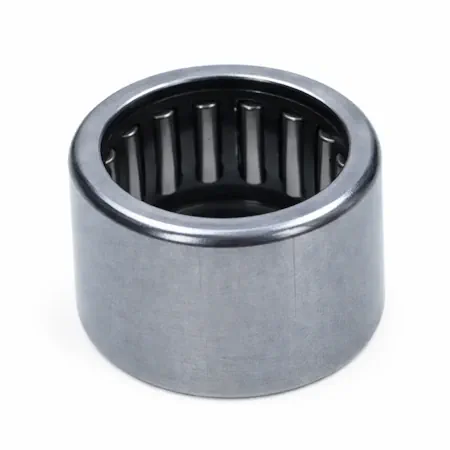

3.2 Pilot Bearing / Thrust Washer

The pilot bearing or thrust washer is located between the flywheel and crankshaft.

• Function: Ensures smooth torque transmission from the crankshaft to the gearbox.
• Common Issues: A worn pilot bearing may cause vibrations and uneven gearbox operation.


3.3 Clutch Peak Torque Limiter

Some vehicles have a torque limiter to protect the clutch and drivetrain from excessive stress.

• Function: Limits the amount of force transmitted through the clutch disc to prevent system damage.
• Common Issues: May cause temporary power loss if it activates too sensitively.


3.4 Clutch Booster

A clutch booster is an additional device found in large trucks and some passenger vehicles, reducing the force required to press the clutch pedal.

• Function: Increases hydraulic or pneumatic pressure to ease clutch operation.
• Common Issues: Pressure leaks or membrane failures may cause a stiff pedal.



4. How to Maintain the Clutch System and Avoid Issues?

• Check clutch wear – If the pedal vibrates or slips, replacement may be needed.
• Monitor hydraulic fluid levels – Low levels may indicate leaks.
• Avoid excessive pedal holding – Prevents premature clutch wear.
• Listen for unusual noises – Grinding or squeaking sounds may indicate a worn release bearing or pilot bearing.



Clutch-related common faults on specific car models

In addition to general design characteristics, practical experience has shown that certain car models and engine versions tend to suffer from clutch-related problems more often than average. The most typical examples are presented below, together with explanations of what the problem usually involves.

It is important to emphasize that these are statistical observations rather than inevitable failures affecting every individual vehicle.



Small-displacement turbo engines (manual transmission)

Volkswagen / Škoda / SEAT
Models equipped with a 1.0–1.5 TSI engine and manual gearbox

Common problems:

• clutch slipping at relatively low mileage

• uneven engagement when pulling away

• vibration at low engine speeds

Causes:

• high torque at low RPM

• lighter clutch assembly

• urban driving and frequent pull-aways

The dual-mass flywheel often wears out together with the clutch.


Small-displacement turbo petrol engines

Ford
Models equipped with the 1.0 EcoBoost engine and manual gearbox

Common problems:

• uneven clutch operation

• vibration and jerking

• premature wear in intensive urban driving

The causes are:

• high torque relative to engine displacement

• heavy load on the clutch at low RPM


High-torque diesel engines

BMW
Models equipped with 2.0 and 3.0 diesel engines and manual gearbox

Typical problems:

• clutch slipping under heavy load

• vibration during acceleration

• wear of the dual-mass flywheel

Problems occur more often:

• when towing a trailer

• with a sporty driving styleat high mileage

Manual gearboxes on French cars

Peugeot / Citroën
1.6 HDi and 1.2 PureTech engines

Common symptoms:

• clutch vibration

• uneven engagement

• Causes:

• soft clutch calibration

• comfort-oriented design

• heavy load in short-distance driving

• rapid clutch wear in urban driving

Dual-clutch automatic transmissions

Volkswagen / Audi
DSG gearboxes with dry clutches (for example DQ200 / DQ200 type such as DQ200)

Typical problems:

• jerking during slow driving

• vibration when pulling away

• uneven clutch operation in traffic jams

Causes:

• overheating of dry clutches

• frequent creeping in traffic

• sensitivity of the design to the manner of use


Japanese petrol and diesel models

Toyota
Diesel engines with manual gearbox (for example 2.0 D-4D)

Common observations:

• rapid clutch wear in demanding conditions

• vibration and noise

• flywheel wear

Problems occur more often:

• in vans and SUVs

• when towing a trailer

• under continuously heavy load

Problems related to the hydraulic clutch drive

Opel / Renault
The following issues have been observed on some models:

• leakage of the clutch master cylinder or slave cylinder

• sinking / loss of pressure in the clutch pedal

• difficult gear shifting

In such cases the clutch is often replaced by mistake, although the actual problem lies in the hydraulic drive system.



What do these examples actually mean?

These examples do not mean that the mentioned cars are unreliable. Rather, they indicate:

• which designs are more sensitive

• which vehicles have the clutch loaded more than average

• why maintenance and driving style are particularly important

A properly used and maintained clutch can last a very long time even on these models.

​​​​​​​How to extend clutch life on these cars?

Recommendations:

• avoid excessive clutch slipping

• do not accelerate hard at low RPM

• use the handbrake when starting uphill

• keep the clutch pedal released while driving

• monitor the condition of the hydraulic system and flywheel

When cared for correctly, the clutch may serve reliably for many years.



Conclusion

The clutch system consists of multiple mechanisms that ensure smooth power transmission between the engine and transmission. Clutch disc, pressure plate, release bearing, cylinders, piping, flywheel, and other components play a crucial role in ensuring efficient vehicle operation. Regular maintenance and early problem detection help prevent costly repairs and extend the lifespan of the clutch system.
