Ctek charger MXS-5.0 12v 5a
The MXS 5.0 is an advanced microprocessor controlled battery charger with automatic temperature compensation built in providing unrivalled performance on lead-acid batteries from 1.2Ah up to 110Ah. The MXS 5.0 solves a broad range of battery problems and is the ideal charger for the user with high demands. Features of the MXS 5.0 include diagnosis of battery condition to establish if it can receive and retain charge, patented automatic desulphation step and a special reconditioning step that will revive and restore deeply discharged and stratified batteries. AGM option is perfect for maximising performance and life of most Stop - Start batteries. The built in temperature compensation ensures ideal charging performance even in the most extreme conditions. Patented Float/Pulse maintenance makes the MXS 5.0 ideal for long - term maintenance. The entire process of battery testing, charging and maintenance is easily followed on the clear LED display.
The MXS 5.0 is a fully automatic "connect and forget" 12V charger with 8 charging steps and offers selectable SMALL BATTERY, and NORMAL BATTERY programs. The RECOND and AGM options operate individually or together in both SMALL BATTERY and NORMAL BATTERY programs providing great flexibility for the user. Wide charging range on all lead-acid battery types from 1.2Ah up to110Ah with additional maintenance capability to 160Ah. Splash proof and dust proof (IP65). The MXS 5.0 is easy and safe to use, protects vehicle electronics, is spark-free, reverse polarity protected and short circuit proof. The MXS 5.0 features a 5- year warranty.
The MXS 5.0 is a fully automatic "connect and forget" 12V charger with 8 charging steps and offers selectable SMALL BATTERY, and NORMAL BATTERY programs. The RECOND and AGM options operate individually or together in both SMALL BATTERY and NORMAL BATTERY programs providing great flexibility for the user. Wide charging range on all lead-acid battery types from 1.2Ah up to110Ah with additional maintenance capability to 160Ah. Splash proof and dust proof (IP65). The MXS 5.0 is easy and safe to use, protects vehicle electronics, is spark-free, reverse polarity protected and short circuit proof. The MXS 5.0 features a 5- year warranty.
Step 4: Battery ready to use
Step 7: Fully charged battery
Step 8: Maintenance charging
COLD/AGM: Charging in cold conditions, AGM and Stop-Start batteries
RECOND: Recondition of deeply discharged batteries
SMALL: Program for charging small batteries
NORMAL: Program for charging normal batteries
| Volt | 12V |
| Rated Voltage AC | 220–240VAC, 50–60Hz |
| Charging voltage | SMALL, NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V |
| Min battery voltage | 2.0V |
| Charging current | 5A max |
| Current, mains | 0.6A rms (at full charging current) |
| Back current drain | <1Ah/month |
| Ripple | Less than 4% voltage |
| Ambient temperature | -20°C to +50°C, output power is reduced automatically at high temperatures |
| Charger type | 8 step, fully automatic charging cycle |
| Battery types | All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL) |
| Battery capacity | 1.2–110Ah up to 160Ah for maintenance |
| Dimensions | 168 x 65 x 38mm (L x W x H) |
| Insulation class | IP65 |
| Weight | 0.6kg |
| Temperature Compensation | Built in charge voltage compensation according to ambient temperature |
warranty 5 years.
Loe Ctek laadijate spaces here!
Suitable spare parts
|

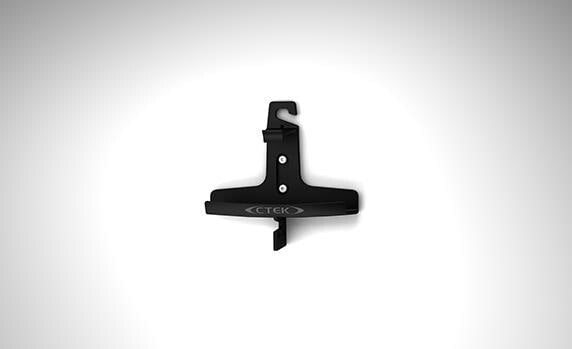

1703-40-006 | MOUNTING BRACKET 40-006 |
|
1703-56-941 | Silikoonümbris |
Alternative products
|
1703-56-998 | Ctek charger MXS-5.0 12v 5a |
Ctek
ctek chargers are the smartest battery chargers in the world. chargers designed and developed in sweden. ctek battery chargers are very versatile, compact, yet easy to use. all chargers are tested and then designed to meet high standards that even exceed the norms of such well-known certification agencies as tyv rheinland.CTEK chargers are ideal for charging batteries in a variety of machines, including cars, caravans, motorcycles, trucks, boats, jet skis, lawnmowers, tractors, etc. CTEK chargers are also ideal for situations where you want to leave the battery charged for a very long time, for example, if you want to store the battery of a classic car, boat or motorcycle throughout the winter. See a presentation of CTEK chargers here.
ctek website .
ctek accessories catalogs pdf
ctek user manuals
EAN: 7350009569989
Delivery method
Fedex Priority
Very fast To home & office
Very fast To home & office
$19.30
Delivery date 2026-10-12
Postal office
To the nearest Postal office (Shipping discount for order starting from 600€ or 700$)
To the nearest Postal office (Shipping discount for order starting from 600€ or 700$)
$24.00
Delivery date 2026-10-26
Courier International (Premium)
To Home or Office (Shipping discount for order starting from 600€ or 700$)
To Home or Office (Shipping discount for order starting from 600€ or 700$)
$46.00
Delivery date 2026-10-19
Fedex Economy
Fast delivery to home or office!
Fast delivery to home or office!
$14.80
Delivery date 2026-10-14
DHL Express
Fast Delivery To Home or Office (Shipping discount for order starting from 600€ or 700$)
Fast Delivery To Home or Office (Shipping discount for order starting from 600€ or 700$)
$28.10
Delivery date 2026-10-07
$85.30
$105.80
-20%
Arrives in 3-4work days
$125.20
Arrives in 3-4work days
$154.70
Arrives in 3-4work days
$67.40
$71.00
-6%
Arrives in 4-5work days
$49.20
$61.10
-20%
Arrives in 3-4work days
$104.80
$157.20
-34%
Arrives in 3-4work days
$188.40
$233.40
-20%
Arrives in 3-4work days
$178.10
$224.90
-21%
Arrives in 3-4work days
$107.10
$155.00
-31%
Arrives in 3-4work days
$102.80
$124.70
-18%
Arrives in 3-4work days
$146.90
$181.10
-19%
Arrives in 3-4work days
$77.50
$94.20
-18%
Arrives in 4-5work days
$129.40
$154.70
-17%
Arrives in 3-4work days
$112.00
$129.70
-14%
Arrives in 3-4work days
$92.50
$110.20
-17%
Arrives in 3-4work days
$35.90
Arrives in 3-4work days
$307.60
$388.20
-21%
Arrives in 3-4work days
How to choose a battery charger?
1. First, make it clear which battery or batteries you want to charge, whether regular lead-acid batteries (in most cars), gel batteries, AGM batteries (used on many motorcycles) or calcium batteries.
... More...

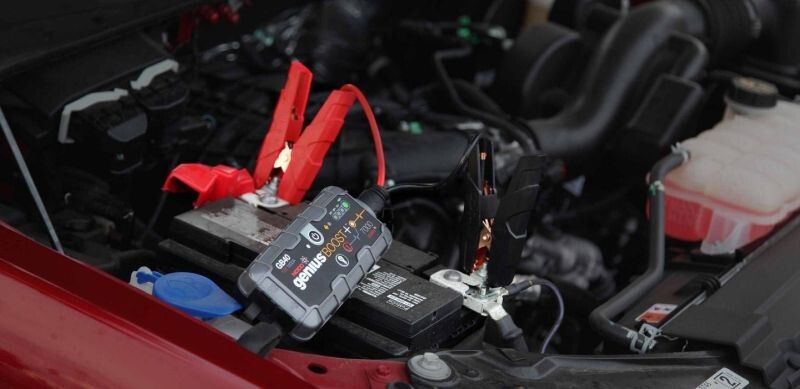

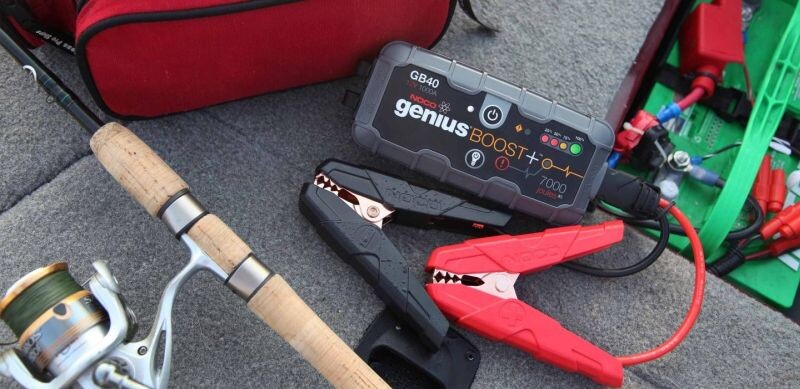

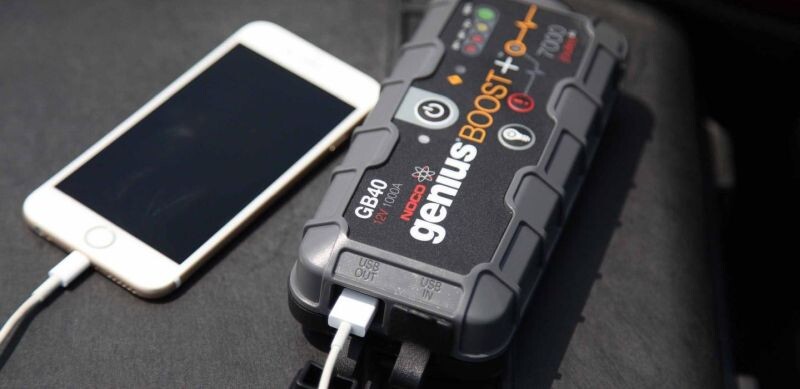

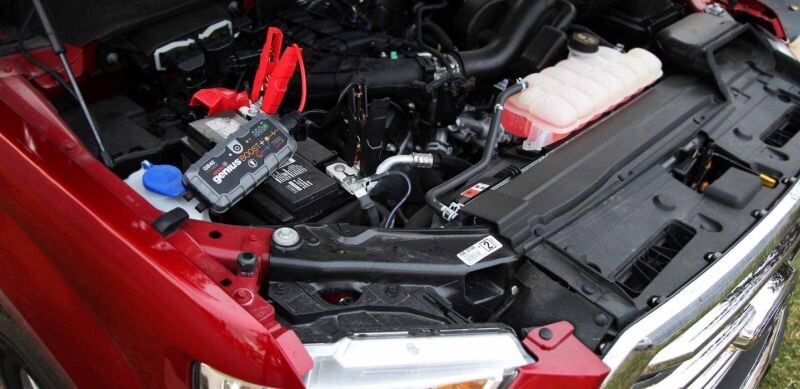

Everything you need to know about car jump starters
