Car Engine Parts: A Detailed Overview

The reliability of a car engine depends largely on the precise functioning of various components. An engine is made up of many complex parts that work in concert to convert fuel energy into motion, which makes the vehicle move. Each component performs its own task to ensure the smooth and efficient operation of the engine. In this article, we will discuss the functions of car engine parts and their importance, including the water pump, oil pump, crankshaft, engine block, and many other components.


Engine parts:
1. cylinder head
2. water pump
3. water pump seal
4. timing case (timing belt cover)
5. oil pump
6. crankshaft seal
7. timing case gasket- timing belt cover gasket
8. crankcase / oil pan
9. crankcase seal
10. crankcase
11. engine block
12. oil cooler

1. Cylinder Head

The cylinder head is located at the top of the engine and covers the cylinders where fuel combustion occurs. The cylinder head often contains valves, valve guides, and vents that regulate the movement of the air-fuel mixture within the engine.

Function: The cylinder head allows the fuel and air mixture to enter the cylinder and the combustion gases to escape. It also ensures the correct direction of oil and coolant flow.

2. Water Pump
The water pump is an important component in the engine cooling system, whose job is to circulate coolant through the engine and radiator to keep the engine's operating temperature under control.

Function: The water pump ensures that coolant is constantly moving through the engine to prevent overheating and keep the engine at optimal operating temperature.

3. Water Pump Gasket
The water pump gasket is a part that is installed between the water pump and the engine block to prevent coolant leakage.

Function: The gasket ensures that the water pump is properly installed and prevents coolant from leaking out of the engine.

4. Timing Belt Cover
A timing belt cover is a protective component that covers the timing belt and keeps it clean from dirt, dust, and other contaminants from the external environment.

Function: The cover protects the timing belt from wear and damage while preventing the intrusion of foreign matter, which can cause malfunctions.

5. Oil Pump
The oil pump is a component whose job is to draw oil from the oil pan and pump it through the engine to lubricate all internal components and prevent excessive friction.

Function: The oil pump ensures lubrication of engine components, preventing overheating and rapid wear of components.

6. Crankshaft seal
The crankshaft is one of the key components of the engine, converting the up-and-down motion of the piston into rotational motion. The rotating crankshaft transmits the mechanical energy of the engine, which in turn moves the vehicle.

Function: The crankshaft converts the motion of the pistons into rotation, giving the engine the ability to move.

7. Timing Belt Cover Seal
The timing belt cover seal is installed at the edges of the timing belt cover to prevent oil or dirt from entering the timing belt area.

Function: The seal helps keep the timing belt area clean to ensure smooth operation of the timing belt and prevent excessive wear.

8. Crankcase bottom - Oil Sump
The oil pan is a tank located at the bottom of the engine that collects the oil used to lubricate the engine. The oil pan also contains oil filters and may be equipped with an oil cooling system.

Function: The oil pan collects the oil, holds it in place, and allows the oil to circulate when pumped to lubricate the internal components of the engine.

9. Oil Pan Gasket
The oil pan gasket is installed between the oil pan and the engine base to prevent oil leakage.

Function: The gasket ensures that oil does not escape from the oil pan, protecting the internal components of the engine and keeping the oil pan full.

10. Crankcase
The crankcase is the lower part of the engine that contains the crankshaft and other mechanisms involved in developing the engine's power. It also contains oil cavities that provide lubrication.

Function: The crankcase holds the crankshaft and other components in place, as well as providing an oil reservoir for lubricating the engine.

11. Engine Block
The engine block is the main structural part that houses all the internal engine components, such as the cylinders, pistons, and crankshaft. The engine block is usually made of a strong material, such as cast iron or aluminum.

Function: The engine block provides support and protection for all the internal engine components, as well as routing coolant and oil as needed.

12. Oil Cooler
An oil cooler is a system that cools the engine oil to prevent overheating. It can be similar to a water pump, where the oil flows through cooling modules to cool it before it returns to the engine.

Function: An oil cooler maintains the temperature of the engine oil within optimal limits, preventing overheating and deterioration of the oil quality.


Construction and parts of an older car engine with a carburetor:

1. Air filter
2. Carburetor
3. Gasoline pump
4. Distributor
5. Thermostat
6. Clutch assembly or clutch housing
7. Gear box
8. Starter
9. Engine block
10. Alternator
11. Spark plug
12. Oil stick
13. Cylinder head
14. Cylinder head cover








Car belts and pulleys

Picture: Car engine belts and pulleys.

1. Camshaft Pulley (Camshaft Gear / Camshaft Sprocket)
2. Alternator
3. Camshaft Drive Shaft (for Oil Pump) 4.1 Fan
5. Crankshaft Pulley
6. Distributor Pulley (on older cars)
7. Belt Tensioner
8. Timing Belt

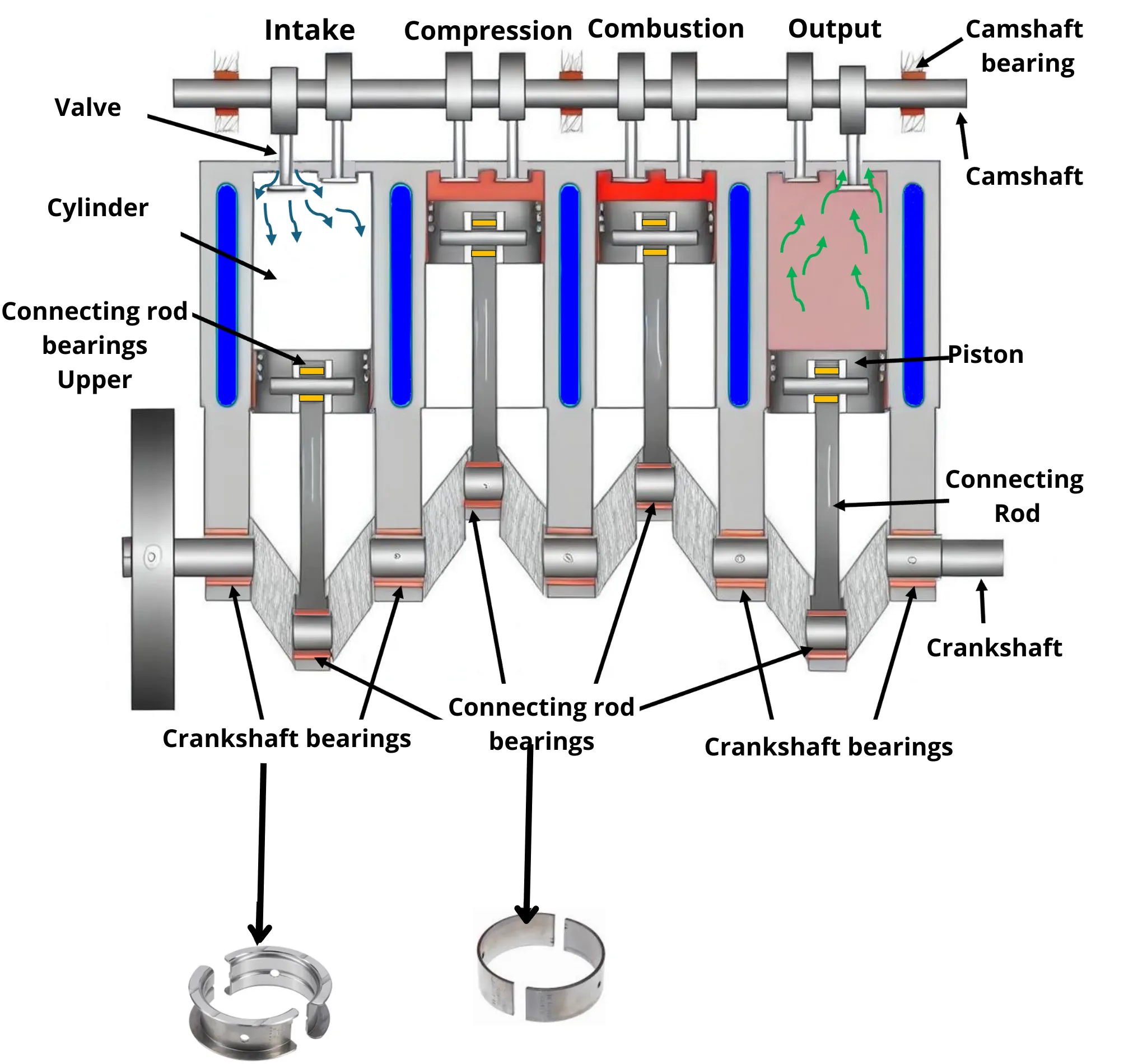

Engine construction

1. Valves
2. Cylinder
3. Upper connecting rod bearings
4. Lower connecting rod bearings
5. Main bearings (crankshaft bearings)
6. Crankshaft
7. Connecting rod
8. Piston
9. Camshaft
10. Camshaft bearings

1. Valves

Valves are mechanisms that open and close the intake and exhaust ports. They regulate the flow of the air–fuel mixture into the cylinder and the release of exhaust gases after the combustion process. Valves operate during the engine cycle and are connected to the camshaft, which controls the precision of their movement. The valve mechanism consists of the valve, valve spring, and valve guides.

• Function: Ensures that the correct amount of air and fuel enters the engine, while exhaust gases are properly expelled.
• Operating principle: Valves open and close according to the engine operating cycle, allowing the correct air–fuel mixture for combustion and the removal of exhaust gases.

2. Cylinder

The cylinder is the component in which internal combustion takes place. The movement of the piston inside the cylinder generates force that drives the engine. The number of cylinders typically determines the engine’s size and power. Cylinders must be manufactured with high precision to ensure low friction and high efficiency.

• Function: Combustion of the air–fuel mixture occurs in the cylinder, producing mechanical energy.
• Operating principle: The piston moves up and down within the cylinder, allowing air and fuel intake and the removal of exhaust gases.

3. Upper Connecting Rod Bearings

Upper connecting rod bearings are located at the upper end of the connecting rod, where it connects to the piston. These bearings withstand high loads generated when the connecting rod moves the piston up and down within the cylinder.

• Function: Ensure smooth movement of the connecting rod and reduce excessive friction.
• Operating principle: The bearings carry the load and allow free movement of the connecting rod while preventing excessive wear of the piston and crankshaft.

4. Lower Connecting Rod Bearings

Lower connecting rod bearings serve a similar purpose but are located at the lower end of the connecting rod, where it connects to the crankshaft. These bearings also endure high loads and allow the transfer of mechanical energy to the crankshaft.

• Function: Reduce friction and ensure free movement of the connecting rod.
• Operating principle: The lower bearings work together with the upper bearings to ensure smooth motion and reduce wear between components.

5. Main Bearings (Crankshaft Bearings)

Main bearings support the rotation of the crankshaft and are located in the engine block. They withstand high mechanical loads as they support all rotating engine components.

• Function: Hold the crankshaft in position and ensure smooth rotation.
• Operating principle: The bearings support the crankshaft, allowing it to rotate with minimal friction while withstanding the high loads generated by engine operation.



6. Crankshaft

The crankshaft is one of the most important engine components, converting the linear motion of the piston into rotational motion. The crankshaft connects all connecting rods and transfers power to the drivetrain. Its operating principle is based on converting the piston’s up-and-down motion into rotational movement that delivers mechanical energy.

• Function: Converts the piston’s linear motion into rotational motion to drive the vehicle’s wheels.
• Operating principle: As the piston moves up and down, the connecting rod turns the crankshaft, converting linear motion into rotation.

7. Connecting Rod

The connecting rod links the piston to the crankshaft. Its purpose is to transmit the force generated by the piston’s movement to the crankshaft. The connecting rod operates as part of a smoothly moving mechanism and withstands high mechanical loads.

• Function: Connects the piston to the crankshaft and transmits force to the crankshaft.
• Operating principle: The connecting rod moves up and down with the piston, transferring force to the crankshaft and converting it into rotational motion.

8. Piston

The piston is a component that moves up and down inside the cylinder to compress the air–fuel mixture and initiate internal combustion. The piston’s movement converts the energy produced during combustion into mechanical motion that drives the engine.

• Function: Compresses the air–fuel mixture and transfers mechanical energy that is converted into rotational power.
• Operating principle: The piston moves up and down, compressing the air–fuel mixture and participating in the combustion process, which generates mechanical energy.

9. Camshaft

The camshaft controls the opening and closing of the engine valves. It is connected to the crankshaft but operates at a different speed, ensuring precise valve timing according to the engine’s operating cycle.

• Function: Controls valve movement to ensure proper intake of the air–fuel mixture and the release of exhaust gases.
• Operating principle: The camshaft rotates and actuates the valves, ensuring correct timing for intake and exhaust processes.

10. Camshaft Bearings

Camshaft bearings are located at the camshaft support points to ensure smooth rotation and reduce friction. These bearings function similarly to crankshaft bearings but are designed for the camshaft.

• Function: Support camshaft rotation and help reduce wear.
• Operating principle: The bearings hold the camshaft in position and reduce friction, allowing smooth and efficient movement.

1.Camshaft

2.Finger follower

3.Valve spring retainer

4.Valve spring

5.Valve guide

6.Valve

7.Valve seat

8.Hydraulic lash adjuster / Hydraulic lifter / Tappet

9.Free roller


1. Camshaft

Function:

• The camshaft is a rotating metal shaft equipped with specially shaped lobes (cams). Its primary function is to open and close the intake and exhaust valves at the correct timing.
• The cam lobes actuate valve train components (such as the finger follower), which transmit motion to the valves, allowing them to open and close with precise timing.

Construction and characteristics:

• Manufactured from durable steel or alloy to withstand high loads and friction.

• Camshaft timing is controlled by a timing belt, chain, or gears that connect it to the crankshaft.

• The shape and design of the camshaft significantly influence engine performance and torque.

Importance:

• Determines when and how long the valves open, which is critical for engine efficiency and power output.



2. Finger Follower

Function:

• The finger follower is a mechanical lever that transmits motion from the camshaft to the valve stem.
• Its role is to open and close the valve according to camshaft movement.

Types:

• Conventional finger follower: A simple mechanical lever.

• Roller finger follower: Incorporates a roller to reduce friction between the camshaft and the follower.

Construction and characteristics:

• Typically a curved or finger-shaped lever, with one end contacting the camshaft and the other the valve stem.

• Made from strong, wear-resistant materials such as hardened steel.

Importance:

• Smooth and precise transmission of motion from the camshaft to the valve is essential for proper engine operation.

3. Valve Spring Retainer

The valve spring retainer is a critical component of the engine valve train that holds the valve spring in place and ensures it can perform its function effectively. It is a mechanical part that secures the valve spring to the valve stem, allowing the valve to open and close in accordance with camshaft movement.

Location and Function of the Valve Spring Retainer

Location:

• Positioned at the top of the valve spring, between the valve stem and the spring.

• Secured to the valve stem using special locking components known as valve locks or valve keepers.

Primary Function:

• Holds the valve spring firmly in position relative to the valve stem.

• Ensures that the valve spring applies the correct force during valve opening and closing, helping the valve to close quickly and smoothly.



How the Valve Spring Retainer Works

Spring retention:

• During assembly of the valve train, the valve spring is placed against the valve spring retainer.

• Valve locks are then installed onto the valve stem, locking the retainer securely in place.

Transmission of motion:

• When the camshaft actuates the valve, the valve spring retainer moves together with the valve spring against the applied force.

• When valve actuation force is released, the spring pushes the retainer upward, returning the valve to its closed position.



Materials Used for Valve Spring Retainers

• Typically manufactured from steel to withstand high mechanical loads and elevated operating temperatures.

• Lightweight materials such as titanium are used in high-performance engines to reduce inertia and increase allowable engine speed (RPM range).



Importance of the Valve Spring Retainer

• Valve train stability: Keeps the spring securely in place and enables precise, efficient valve operation.

• Durability and wear resistance: Strong materials and precise fit reduce wear within the valve train.

• Safety: Prevents valve train failure under high loads or at high engine speeds.



Possible Problems with Valve Spring Retainers

• Wear or cracking: Over time, fatigue or wear may occur, leading to improper valve operation.

• Incorrect installation: Improperly installed retainers or valve locks can cause inefficient operation or severe valve train damage.

• Unsuitable materials: Low-quality or weak materials may fail under engine operating stresses.



Summary

The valve spring retainer is an essential component of the engine valve train, securing the valve spring and ensuring smooth and reliable valve operation. Its durability and correct installation are crucial for engine performance, reliability, and long service life.

4. Valve Spring

Function:

• The function of the valve spring is to return the valve to its closed position after it has been opened. It ensures that the valve closes quickly and accurately once the camshaft force is released.

Construction and characteristics:

• A helical metal spring made from heat-resistant, high-strength steel.

• Installed around the valve stem, positioned between the valve seat area and the valve spring retainer.

Importance:

• Ensures reliable operation of the valve train and prevents valve float or damage.

• If the valve spring loses its elasticity or breaks, the valve may remain open, leading to serious engine malfunctions.

5. Valve Guide

The valve guide is a cylindrical component of the engine valve train whose purpose is to guide the valve stem during its movement and keep the valve aligned on its correct path. It is installed in the cylinder head and allows the valve to open and close smoothly while maintaining proper sealing and efficient combustion.

Functions of the Valve Guide

Guiding valve stem movement:

• Ensures that the valve stem moves in a straight up-and-down motion without lateral deviation.

• This is essential for proper seating of the valve against the valve seat and for preventing gas leakage.

Wear reduction:

• Reduces friction between the valve stem and the cylinder head.

• Prevents metal-to-metal contact, extending the service life of both components.

Heat transfer:

• Helps conduct heat away from the valve stem to the cylinder head, aiding in cooling of the valve train.

Oil control:

• Regulates the amount of oil that reaches the interface between the valve stem and valve guide, ensuring adequate lubrication while preventing excessive oil from entering the combustion chamber.



Construction of the Valve Guide

Materials:

• Commonly manufactured from durable materials such as:

  • Cast iron (standard applications)

  • Bronze (high-performance or racing engines, due to superior heat transfer and reduced friction)

Shape and dimensions:

• A cylindrical tube precisely matched to the valve stem diameter, allowing smooth yet controlled movement.

Installation:

• Press-fitted or precisely installed into the cylinder head.

• Installation may require heating the cylinder head or using specialized tools.



Valve Guide Problems and Symptoms

Worn valve guide:

• Over time, valve guides may wear, causing excessive valve stem play and poor sealing.

Symptoms include:

• Increased oil consumption: Worn guides allow oil to enter the combustion chamber, resulting in exhaust smoke.

• Valve operation issues: Improper valve sealing reduces engine power and fuel efficiency.

Incorrect installation:

• Improperly installed valve guides can cause uneven valve movement, damaging the valve seat and compromising sealing.

Heat-related issues:

• Poor heat dissipation may lead to valve overheating, potentially causing valve stem bending or valve failure.



Valve Guide Maintenance and Repair

Replacement of worn guides:

• Worn valve guides must be replaced, typically requiring cylinder head removal and specialized tools.

Reaming and repair kits:

• Some valve guides can be reamed and fitted with repair inserts to restore proper function.



Summary

The valve guide is a critical component of the engine valve train, ensuring precise valve movement and proper sealing. Its condition directly affects engine performance, efficiency, and longevity. Regular inspection and timely replacement are essential to prevent valve train problems.


6. Valve

Function:

• The valve regulates the intake of the air–fuel mixture into the combustion chamber (intake valve) and the expulsion of exhaust gases (exhaust valve).
• It opens and closes the combustion chamber in accordance with the engine operating cycle.

Construction and characteristics:

• Manufactured from durable, heat-resistant metals or alloys capable of withstanding high temperatures and pressures.

• Consists of two main parts:

  • Valve head: The portion that seals tightly against the valve seat to close the combustion chamber.

  • Valve stem: A long, slender shaft that guides valve movement. It moves up and down within the valve guide.

Importance:

• Proper valve sealing and accurate timing are critical for combustion efficiency and overall engine performance.

7. Valve Seat

The valve seat is a key component of the engine valve train that provides a tight sealing surface for the valve. It is a precisely machined ring or surface located in the cylinder head against which the valve head closes to seal the combustion chamber. The valve seat plays a vital role in engine efficiency, sealing, and combustion performance.



Functions of the Valve Seat

Ensuring valve sealing:

• The valve seat allows the valve head to close accurately and tightly, preventing gas leakage from the combustion chamber or unwanted air ingress.

Heat and pressure resistance:

• Designed to withstand the high temperatures and pressures generated during the combustion process.

Maintaining power and efficiency:

• An effective valve seat maintains proper engine compression, ensuring efficient fuel combustion and improved engine performance.



Valve Seat Construction

Materials:

• Typically made from durable, heat-resistant materials such as:

  • Cast iron (standard engines)

  • Hardened steel or nickel-based alloys (modern or high-performance engines)

  • Bronze or specialized alloys designed for high-temperature durability

Installation:

• The valve seat is usually press-fitted or machined into the cylinder head.

• In some cases, valve seat inserts are used to provide additional durability.

Shape:

• Precisely machined at specific angles to match the valve head (commonly 30°, 45°, or 60°, depending on engine design).



Valve Seat Operation

Valve opening and closing:

• When the valve closes, the valve head presses firmly against the valve seat, sealing the combustion chamber.

• When the valve opens, it allows intake of air or the air–fuel mixture (intake valve) or exhaust gas flow (exhaust valve).

Heat transfer:

• The valve seat helps transfer heat from the valve to the cylinder head, reducing the risk of valve overheating.



Possible Valve Seat Problems

Wear and damage:

• Over time, valve seats may wear, preventing proper valve sealing and causing compression loss.

• Damage may result from combustion deposits or improper valve operation.

Incorrect installation or excessive wear:

• Improperly installed or worn valve seats can lead to leakage, reducing engine power and efficiency.

Combustion chamber leakage:

• Poor sealing between the valve and valve seat allows gases to escape, leading to power loss and increased fuel consumption.



Valve Seat Maintenance and Repair

Valve seat grinding:

• Worn valve seats can be ground to restore proper sealing between the valve and the seat.

Valve seat replacement:

• Severely damaged valve seats may require removal and replacement.

Use of valve seat inserts:

• High-performance or heavy-duty engines often use reinforced valve seat inserts for improved durability.



Signs of Valve Seat Problems

• Loss of engine power

• Excessive exhaust smoke

• Rough or uneven engine operation

• Increased fuel consumption



Summary

The valve seat is a critical component of the engine valve train, ensuring tight valve sealing and efficient engine operation. Its condition directly affects engine compression, performance, and fuel economy. Regular maintenance and timely repair or replacement are essential for engine longevity and efficiency.


8. Hydraulic Lash Adjuster (also known as Hydraulic Lifter or Tappet)

A hydraulic lash adjuster is an essential component of the engine valve train, designed to automatically regulate valve lash during engine operation. It helps prevent excessive noise and wear while ensuring efficient and reliable valve train performance. Hydraulic lash adjusters are commonly used in modern engines, particularly in overhead camshaft (OHC and DOHC) designs.



Functions and Operating Principle of the Hydraulic Lash Adjuster

Automatic valve lash adjustment:

• Valve lash is the clearance between the camshaft and the valve train components that occurs due to thermal expansion and contraction of metal parts.

• Incorrect valve lash can lead to reduced engine performance or increased noise.

• The hydraulic lash adjuster automatically compensates for this clearance using engine oil pressure.

Use of oil pressure:

• Inside the adjuster is a small piston and chamber that fill with pressurized engine oil.

• Oil pressure flows through internal passages and positions the piston correctly.

• When valve lash increases (such as when the engine is cold and components contract), oil pressure fills the gap and restores proper clearance.

Noise reduction:

• Excessive valve lash causes ticking or knocking noises.

• The hydraulic lash adjuster reduces or eliminates this noise by maintaining correct clearance, resulting in quiet and smooth engine operation.



Construction and Characteristics

Material:

• Typically manufactured from hardened steel or lightweight alloys to withstand high temperatures and operating pressures.

Design:

• Consists of a piston, spring, and oil chamber working together to regulate valve lash.

Installation location:

• Positioned near the valve stem, finger follower, rocker arm, or camshaft, depending on engine design.



Advantages of Hydraulic Lash Adjusters

• Low maintenance: Unlike mechanical systems, hydraulic adjusters do not require regular manual valve lash adjustment.

• Noise reduction: Eliminates valve train noise caused by excessive clearance.

• Improved engine performance: Accurate valve timing and clearance contribute to more efficient combustion.

• Extended service life: Reduces wear on valve train components.



Problems and Maintenance

Although hydraulic lash adjusters are generally reliable, issues may occur under certain conditions:

Oil quality and pressure:

• Poor-quality oil or insufficient oil pressure can cause adjuster malfunction.

• Using manufacturer-recommended engine oil and performing regular oil changes is critical.

Wear or clogging:

• Blocked oil passages can prevent proper oil pressure from reaching the adjuster, resulting in ticking noises and uneven operation.

Noise during cold starts:

• When the engine is cold, the adjuster may temporarily operate improperly; this typically resolves once the engine warms up.



Maintenance Recommendations

• Regular oil changes and monitoring oil quality are essential to prevent hydraulic lash adjuster problems.

• If excessive noise or rough engine operation occurs, the valve train should be inspected and faulty adjusters replaced if necessary.



Summary

The hydraulic lash adjuster is a vital component of modern engine valve trains, providing automatic valve lash compensation and smooth operation. It reduces noise, wear, and maintenance requirements while improving engine efficiency and reliability. With proper maintenance and high-quality engine oil, hydraulic lash adjusters can operate reliably throughout the engine’s service life.


9. Free Roller

A free roller is a mechanical component used in the engine valve train, particularly in modern high-performance and efficiency-focused engines. It is a roller-shaped element typically positioned between the camshaft and valve train components, such as the rocker arm or finger follower. Its primary purpose is to reduce friction and improve overall valve train efficiency and reliability.



Functions of the Free Roller

Friction reduction:

• The free roller reduces friction between the camshaft and the rocker arm, finger follower, or tappet.

• This results in more efficient valve train operation and reduced component wear.

Motion transmission:

• The free roller transfers the camshaft’s rotational motion to the valve train, allowing the valves to open and close.

Improved heat management:

• Reduced friction leads to lower heat generation, helping maintain stable engine operating temperatures.

Improved efficiency and fuel economy:

• By minimizing frictional losses, the free roller contributes to improved fuel efficiency and increased engine performance.



Location of the Free Roller in the Valve Train

• Rocker arm / finger follower: The free roller may be located at the contact point between the rocker arm and the camshaft.

• Tappet or cam follower: In some designs, the free roller is integrated into the tappet, allowing it to roll along the camshaft lobe.



Advantages of the Free Roller

• Extended service life: Reduces wear on the camshaft and other valve train components.

• Low friction: Minimizes energy losses, increasing overall engine efficiency.

• Quieter operation: Reduced mechanical friction lowers operating noise.



Possible Problems with Free Rollers

Wear:

• Over time, the roller surface or internal bearings may wear, potentially damaging the camshaft.

Bearing failure:

• If the internal bearings fail, the roller may seize, leading to serious valve train damage.

Lubrication issues:

• Insufficient lubrication can cause overheating and accelerated wear of the roller and its bearings.



Maintenance and Repair

Regular lubrication checks:

• Proper lubrication is essential to prevent friction and premature wear.

Inspection for wear:

• During engine maintenance, the free roller should be inspected to ensure smooth rotation and absence of damage.

Replacement when damaged:

• Worn or damaged free rollers must be replaced promptly to prevent further damage to the camshaft or valve train.



Summary

The free roller is a vital component of the engine valve train, designed to reduce friction and improve valve operation efficiency. It enhances engine durability, performance, and fuel economy while reducing maintenance costs. Regular inspection, proper lubrication, and timely replacement ensure long-term, trouble-free operation of this component.






1. Valve keepers (valve locks)

2. Valve spring retainer

3. Valve spring

4. Valve stem seal




Figure: Valve stem seals and valve springs


Automotive Valve Train Components – Valve Keepers, Valve Stem Seals, and Other Essential Parts

The engine valve train is one of the most critical systems affecting engine operation, performance, and durability. Valve keepers, valve stem seals, rocker arm bushings, and valve clearance adjusting discs (shims) are essential components that ensure smooth and reliable engine operation.



Valve Keepers – What They Are and Why They Matter

Valve keepers are small metal components that secure the valve to the valve spring. They help keep the valve firmly seated and ensure that the valve spring remains correctly positioned.

Main Functions of Valve Keepers:

• Secure the valve to the valve spring

• Prevent unintended valve movement or release

• Ensure smooth engine operation and accurate valve timing

Common Problems and Solutions:

• Worn valve keepers: May cause improper valve positioning and reduced engine performance

• Damaged or loose keepers: Can lead to severe engine damage, including valve failure

Solution: Inspect valve keepers during engine maintenance and replace them if necessary.



Valve Stem Seals – Keeping Oil Under Control

Valve stem seals prevent engine oil from entering the combustion chamber. These seals are located around the valve stem and stop excessive oil leakage through the intake or exhaust valves.

Main Functions of Valve Stem Seals:

• Prevent engine oil from entering the combustion chamber

• Reduce oil consumption and prevent exhaust smoke

• Ensure efficient and environmentally friendly engine operation

Common Problems and Solutions:

• Worn or hardened seals: Can cause increased oil consumption and bluish exhaust smoke

• Oil burning: Damaged seals allow oil to enter the combustion chamber, contaminating the engine

Solution: If the engine consumes excessive oil or produces blue smoke, inspect and replace the valve stem seals as needed.



Rocker Arm Bushing – How It Affects Engine Performance

The rocker arm bushing is a component located inside or around the rocker arm that helps reduce friction between the rocker arm and the camshaft.

Main Functions of the Rocker Arm Bushing:

• Ensures smooth rocker arm movement and reduces wear

• Reduces vibration and engine noise

• Extends the service life of the valve train

Common Problems and Solutions:

• Worn bushings: Can cause excessive valve train noise

• Poor lubrication: Insufficient oil supply accelerates bushing wear

Solution: Inspect and lubricate bushings according to manufacturer guidelines or replace them if worn.



Valve Clearance Adjusting Disc (Shim) – Precise Valve Clearance Control

A valve clearance adjusting disc (shim) is a metal disc used to precisely set the valve clearance between the camshaft and the valve. Proper valve clearance is essential for optimal engine performance.

Main Functions of the Valve Clearance Adjusting Disc:

• Enables precise valve opening and closing adjustment

• Ensures smooth and efficient engine operation

• Reduces engine noise and component wear

Common Problems and Solutions:

• Incorrect valve clearance: Too large or too small clearance can cause engine malfunctions

• Shim wear: Over time, shims may wear and require replacement

• Solution: Check valve clearance regularly and replace the shim with the correct thickness when necessary.



Valve keepers, valve stem seals, rocker arm bushings, and valve clearance adjusting discs are vital components of the engine valve train. Their condition directly affects engine performance, reliability, and longevity. Regular maintenance and early detection of problems help prevent major engine failures and ensure smooth and efficient operation. If you notice excessive oil consumption, loss of power, or unusual engine noise, these components should be among the first to be inspected.



Summary

The operation of an automotive engine is based on the internal combustion process, where an air–fuel mixture is burned to produce mechanical energy. The coordinated function of engine components—such as valves, cylinders, connecting rods, pistons, the crankshaft, and the camshaft—ensures smooth engine operation. Each component plays a specific role in achieving efficient and reliable engine performance. When all parts work in precise harmony, the engine delivers long-term durability and high performance.
